MEAN WELL

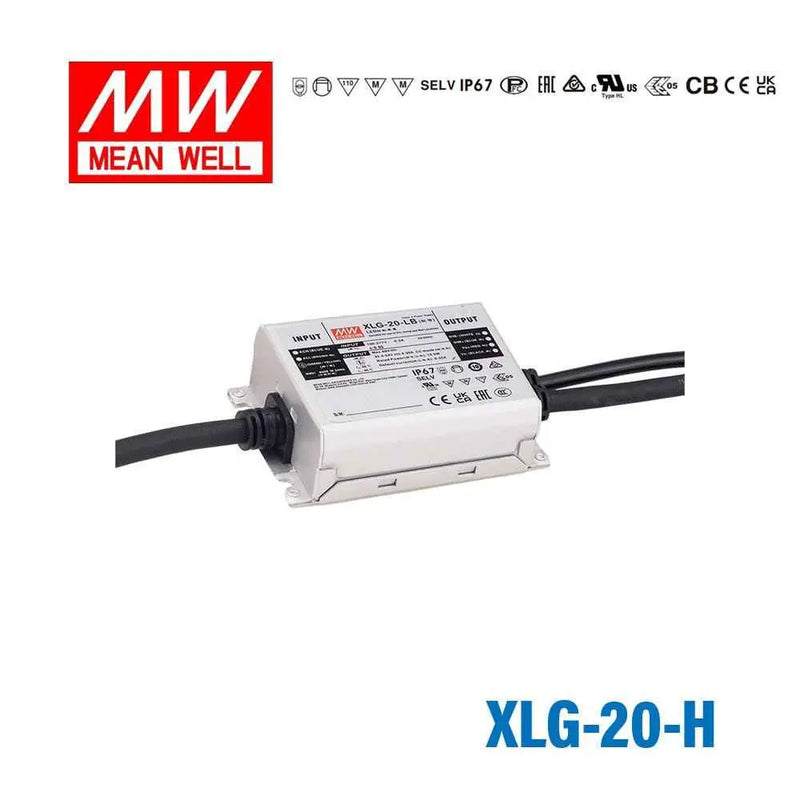

XLG-20-H

Name: XLG-20-H
Brand: MEAN WELL
Price: 22.18 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$22.18

10+

$21.07

20+

$20.63

50+

$20.18

100+

$19.74

200+

$19.30

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

40V

Rated Current

0.7A

Power Rating

21W

Waterproof

IP67

Dimensions

3.74 x 2.48 x 1.18 in

Weight

0.74 lbs

Características

Salida en modo de corriente constante (Clase I)

Amplio rango de entrada 100~305 VCA

Función PFC activa incorporada

Unidad de potencia Clase 2

Consumo de energía sin carga <0.5W

Clasificación IP67 para instalaciones interiores o exteriores

Función de atenuación 3 en 1 (diseño de aislamiento)

Vida útil > 50.000 horas

5 años de garantía

Especificación general

Rango de voltaje de entrada de CA	90~305 VCA
Corriente de irrupción de CA	Arranque en frío, 50A a 230 VCA
Tiempo de configuración, aumento, mantenimiento	500ms, 100ms, 12ms
Tensión de resistencia	E/S-S/O: 3.75kVCA, E/S-FG: 2kVCA, S/O-FG: 1.5kVCA
Temperatura de trabajo	-40~+80°C
Normas de seguridad	BS EN/EN62384; UL8750 aprobado; EAC TP TC 004
Normas EMC	EN55015, EN61000-3-2 clase C,EN61000-3-3, EN61000-4-2,3,4,5,6,8,11
Dimensiones (LxAnxAl)	95x63x30
Embalaje	24 unidades / 8.67kg

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
