MEAN WELL

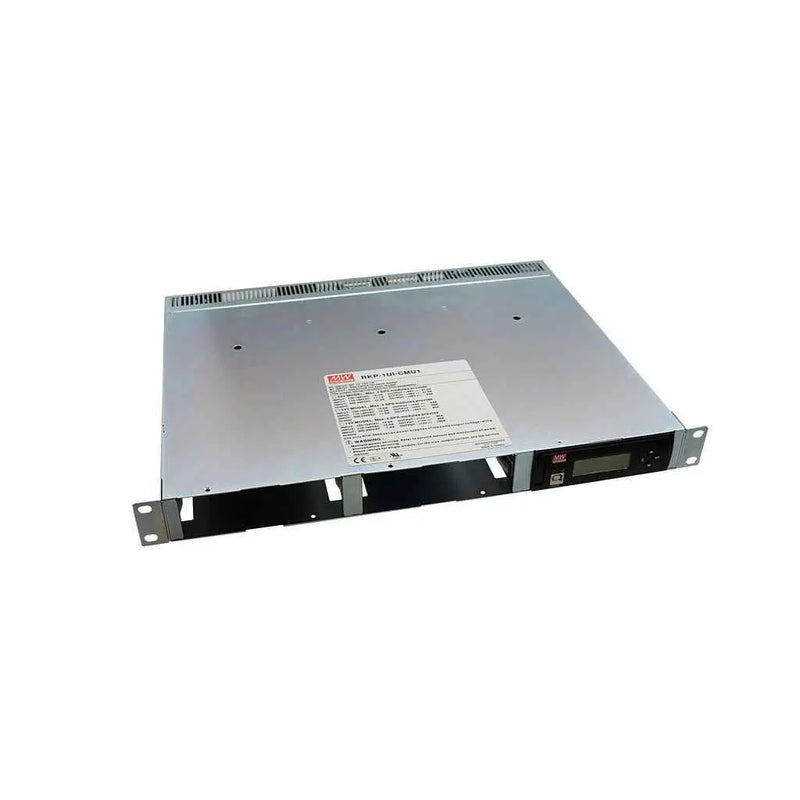

RKP-1UI-CMU1

Name: RKP-1UI-CMU1
Brand: MEAN WELL
Price: 745.83 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$745.83

10+

$708.54

20+

$693.62

50+

$678.71

100+

$663.79

200+

$648.87

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Waterproof

Non-waterproof

Dimensions

18.89 x 13.77 x 1.73 in

Weight

9.70 lbs

Características

Montaje en rack de 19 pulgadas y perfil 1U

Pantalla LCD y botones en el panel frontal para servicio in situ sin PC

Interfaz USB, RS-232 o Ethernet para conexión a PC local o monitoreo y control remotos a través de módem GSM

Registro de alarmas/eventos con hora y fecha

Software de comunicación para PC basado en Windows

Conexiones de cableado fáciles en la parte trasera

4 salidas de relé programables por el usuario para monitoreo o advertencia remota tradicional

5 años de garantía

Especificación general

Rango de voltaje de entrada de CA	12~15VCC
Potencia auxiliar	10.8 ~ 13.2V
Voltaje soportado	S/P-FG:0.7KVDC; E/S-S/P:3KVAC E/S-FG:2KVAC S/P-FG:0.7KVDC
Temperatura de trabajo	-25~+70ºC (consultar curva de reducción de potencia de salida)
Normas de seguridad	Aprobado por EAC TP TC 004, diseño conforme a TUV BS EN/EN62368-1; UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, aprobado por EAC TP TC 004
Estándares EMC	EN55032 clase A, EN61000-4-2,3,4,5,6,8,11
Número de caja	959A
Dimensión (LxAnxAl) (mm)	147.512741mm(RKP-CMU1); 350.8483.644mm(RKP-1U-CMU1)
Embalaje	16 piezas/13.8 Kg

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
