MEAN WELL

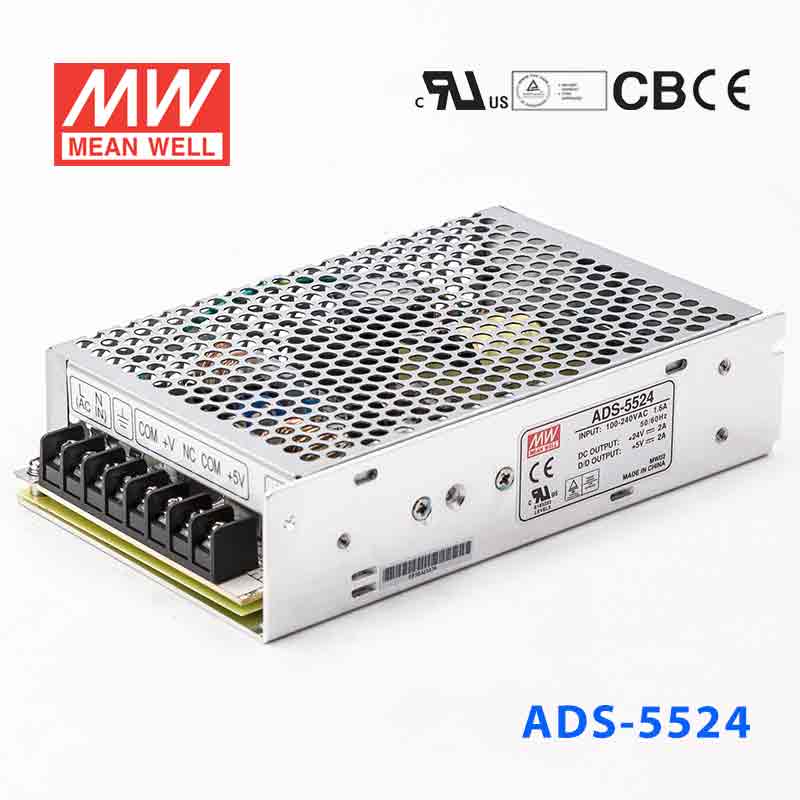

ADS-5524

Name: ADS-5524
Brand: MEAN WELL
Price: 44.67 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$44.67

10+

$42.44

20+

$41.54

50+

$40.65

100+

$39.76

200+

$38.86

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

Power Rating

58W

Waterproof

Non-waterproof

Dimensions

6.25 x 3.81 x 1.49 in

Weight

1.25 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Características

Entrada universal de CA / Rango completo

Protecciones: cortocircuito / sobrecarga / sobretensión

Refrigeración por convección de aire libre

Prueba de quemado al 100% a plena carga

Frecuencia de conmutación fija a 45 KHz

2 años de garantía

Especificaciones generales

Rango de voltaje de entrada de CA	88~264 VCA; 124~370 VCC
Corriente de irrupción de CA	ARRANQUE EN FRÍO 20A/115VAC; 40A/230VAC
Corriente de fuga	<1mA / 240VAC
Protección contra sobrecarga	105%~150% de la potencia de salida nominal
Protección contra sobretensión	115%~135% del voltaje de salida nominal
Tiempo de configuración, ascenso, mantenimiento	1400ms, 50ms, 80ms
Voltaje de resistencia	E/S-S/S: 3KVCA; E/S-FG: 2KVCA; S/S-FG: 0.5KVCA
Temperatura de trabajo	-10~+60°C
Vibración	10 ~ 500Hz, 2G 10min./1ciclo, 60min. cada uno a lo largo de los ejes X, Y, Z
Normas de seguridad	UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 aprobado
Normas EMC	EN55032 clase B, EN61000-3-2,3
Nº de caja	901
Dimensiones (LxFxA)	159x97x38 mm
Embalaje	24 unidades / 13,7 kg
