MEAN WELL

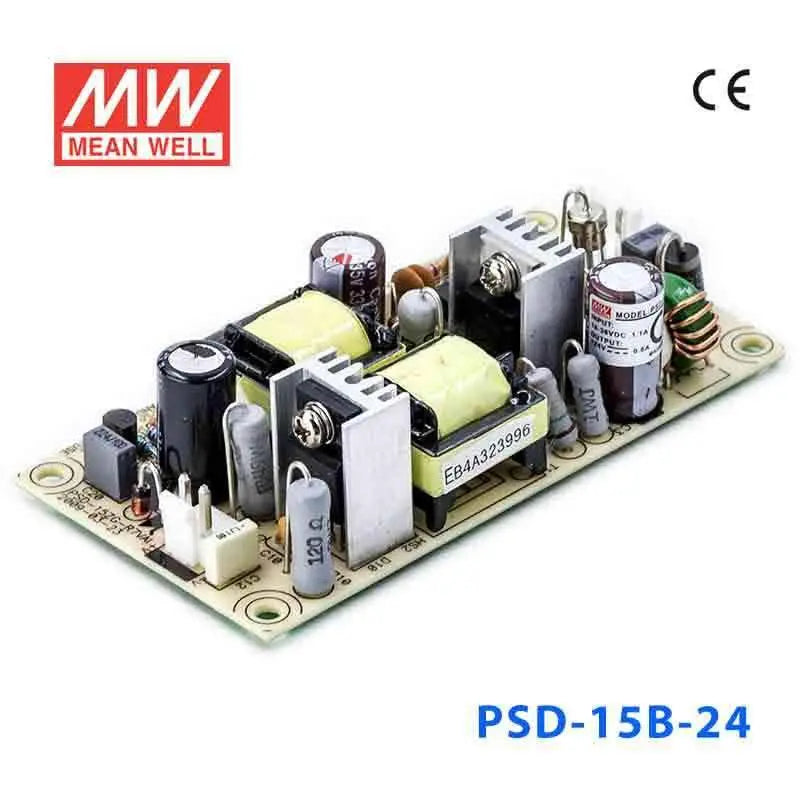

PSD-15B-24

Name: PSD-15B-24
Brand: MEAN WELL
Price: 13.18 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$13.18

10+

$12.52

20+

$12.26

50+

$11.99

100+

$11.73

200+

$11.47

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

0.66A

Power Rating

14.4W

Waterproof

Non-waterproof

Dimensions

3.70 x 1.92 x 0.98 in

Weight

0.17 lbs

Características

Amplio rango de entrada 2:1

Aislamiento E/S de 2000 VCA

Filtro EMI incorporado, bajo ruido de rizado

Protecciones: Cortocircuito / Sobrecarga / Sobrevoltaje / Polaridad

Prueba de quemado a plena carga del 100%

Bajo costo, alta fiabilidad

2 años de garantía

Especificaciones Generales

Precisión del punto de ajuste de voltaje	± 1.0% (máx.)
Protección de sobrecarga	105% ~ 150% modo hipo, recuperación automática
Protección de sobretensión	115% ~ 135% del voltaje de salida nominal
Tensión de resistencia	E/S-S/O: 2 k VCA, E/S-FG: 1.5 k VCA, 1 minuto
Resistencia de aislamiento	100MQ(mín.)@500VCC
Temperatura de trabajo	-10 ~ +60°C
Estándares de seguridad	Cumple con LVD
Estándares SEMC	EN55022 clase B, EN61000-4-2, 3, 4, 6, 8
Conexión	Paso de 3P, 2P / 3.96mm, JST B3P / B2P-VH
Embalaje	0.081 kg; 120 piezas / 10.72 kg
Dimensión (LxAnxAl) (mm)	94x 49x 25 mm

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
