MEAN WELL

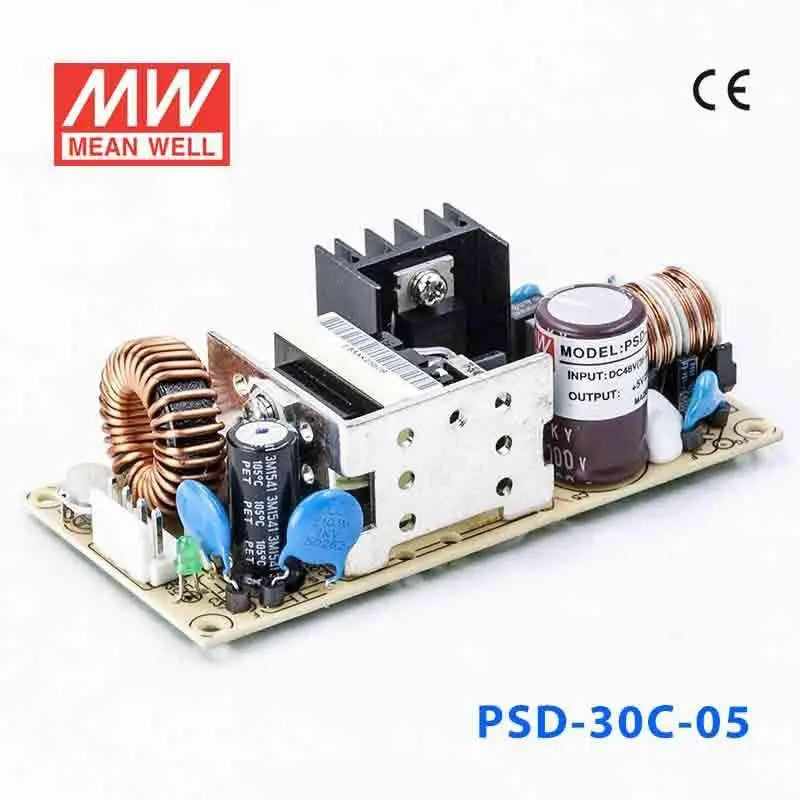

PSD-30C-5

Name: PSD-30C-5
Brand: MEAN WELL
Price: 23.71 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$23.71

10+

$22.52

20+

$22.05

50+

$21.58

100+

$21.10

200+

$20.63

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

Rated Current

Power Rating

25W

Waterproof

Non-waterproof

Dimensions

4 x 2 x 1.18 in

Weight

0.33 lbs

Características

Amplio rango de entrada 2:1

Aislamiento E/S 1500 VCA

Filtro EMI incorporado, bajo ruido de rizado

Protecciones: Cortocircuito / Sobrecarga / Sobretensión / Polaridad inversa

Prueba de quemado al 100% a plena carga

Bajo costo, alta fiabilidad

Refrigeración por convección de aire libre

2 años de garantía

Especificaciones Generales

Rango de ajuste de CC	5V: 4.5 a 5.5 V, 12 V: 11 a 13.5 V, 24 V 22 a 26 V
Protección contra sobrecarga	105% ~ 150% modo hipo, auto-recuperación
Protección contra sobretensión	115% ~ 150% de la tensión de salida nominal
Tensión de resistencia	E/S: 1.5 k VCA, E/P-FG: 1.5 k VCA, 1 minuto
Regulación de línea y carga	± 1% (máx.)
Temperatura de trabajo	-20 ~ + 60 °C (consultar curva de reducción de potencia de salida)
Conexión	3P, 4P / 3.96mm de paso, JST B3P / B4P-VH-B
Estándares EMC	EN55022 clase B, EN61000-4-2,3,4,6,8, EN55024
Dimensiones (LxAnxAl) (mm)	101.6x 50.8x 30 mm

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
