MEAN WELL

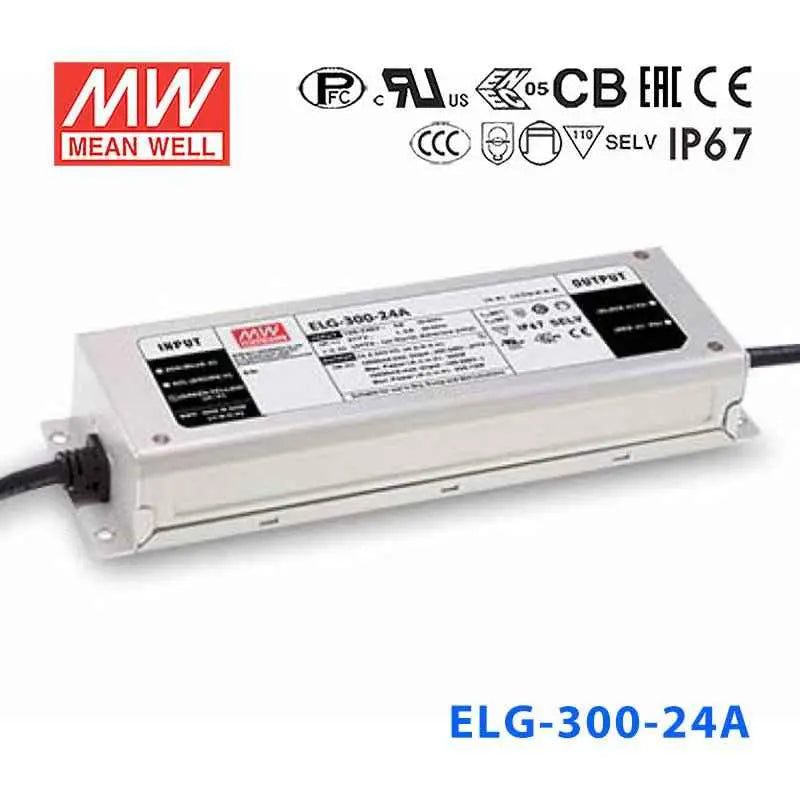

ELG-300-24A

Name: ELG-300-24A
Brand: MEAN WELL
Price: 117.78 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$117.78

10+

$111.89

20+

$109.54

50+

$107.18

100+

$104.82

200+

$102.47

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

12.5A

Power Rating

300W

Waterproof

IP67

Dimensions

9.68 x 3.03 x 1.55 in

Weight

3.19 lbs

Características

Salida de modo de voltaje constante + corriente constante

Funciones de protección: OCP, SCP, OVP, OTP

Clasificación IP67 para instalaciones interiores o exteriores

Salida ajustable mediante potenciómetro

Vida útil típica > 50000 horas

5 años de garantía

Especificación general

Rango de voltaje de entrada de CA	100~305 VCA; 142~431 VCC
Corriente de irrupción de CA	ARRANQUE EN FRÍO 45 A (ancho de pulso = 1200 μs medido al 50 % del pico de corriente) a 230 VCA; Según NEMA 410
Rango de ajuste de CC	±10 % del voltaje de salida nominal
Protección contra sobretensiones	110 %~140 % del voltaje de salida nominal
Tiempo de configuración, ascenso y mantenimiento	500 ms, 100 ms/230 VCA, 500 ms, 100 ms/115 VCA
Voltaje de resistencia	E/S-S/S: 3.75 KVCA E/S-FG: 2.0 KVCA S/S-FG: 1.5 KVCA
Temperatura de trabajo	-40~+80°C (consulte la curva de reducción de potencia de salida)
Estándares de seguridad	UL8750 (tipo "HL") (Excepto para 12V), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independiente, BS EN/EN62384; EAC TP TC 004; GB19510.1, GB19510.14; KC61347-1, KC61347-2-13; IS15885 (Parte 2/Sec 13), aprobado IP67
Estándares EMC	EN55015, EN61000-3-2 clase C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, GB17743, GB17625.1
Dimensiones (LxAnxAl)	246 x 77 x 39.5
Embalaje	16 unidades / 13.4 kg

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
