MEAN WELL

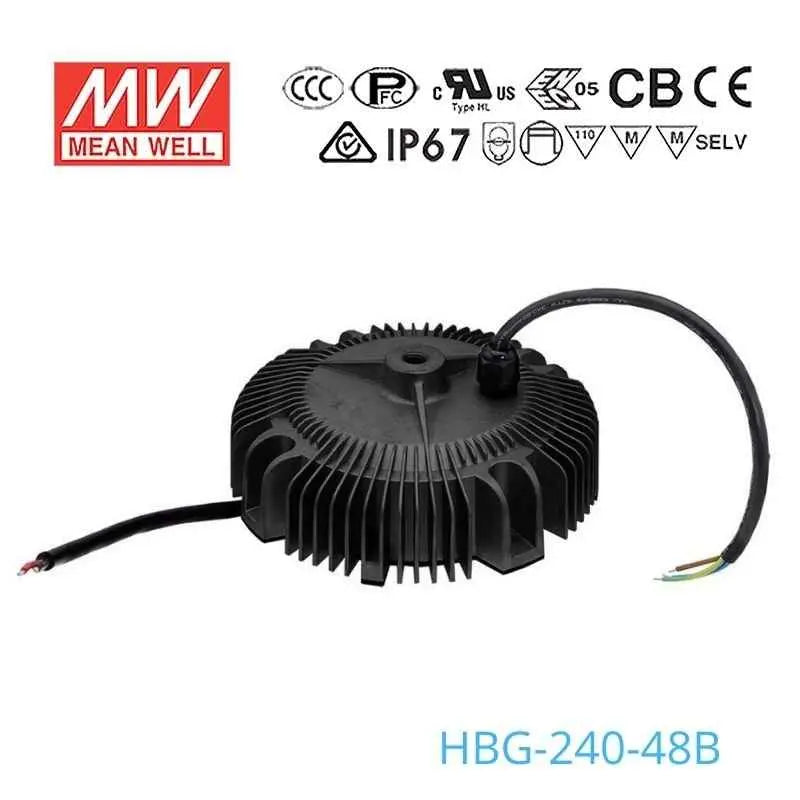

HBG-240-48B

Name: HBG-240-48B
Brand: MEAN WELL
Price: 88.64 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$88.64

10+

$84.21

20+

$82.44

50+

$80.66

100+

$78.89

200+

$77.12

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

48V

Rated Current

Power Rating

240W

Waterproof

IP67

Dimensions

7.53 x 7.53 x 2.71 in

Weight

4.62 lbs

Características

Salida en modo de tensión constante + corriente constante

Carcasa de plástico circular con diseño de clase I

Función PFC activa incorporada

Clasificación IP67 / IP65 para instalaciones interiores o exteriores

Opciones de función: salida ajustable mediante potenciómetro; atenuación 3 en 1; DALI

Vida útil típica > 50000 horas

5 años de garantía

Especificaciones generales

Rango de tensión de entrada CA	90~305 VCA 127~431 VCC
Corriente de irrupción de CA (máx.)	Arranque en frío, 75 A a 230 VCA
Rango de ajuste de CC	65%~100% de corriente nominal
Protección contra sobrecorriente	95 ~ 108%; limitación de corriente constante, se recupera automáticamente después de que se elimina la condición de falla
Tensión soportada	E/S-S/P: 3.75KVCA E/S-FG: 2KVCA S/P-FG: 0.5KVCA
Temperatura de trabajo	-40~+75 °C
Normas de seguridad	UL8750 (tipo "HL"), CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independiente, BS EN/EN62384; GB19510.14, GB19510.1; EAC TP TC 004, aprobado IP65 o IP67
Normas EMC	EN55015, EN61000-3-2 Clase C, EN61000-4-2,3,4,5,6,8,11,
Conexión	SJTW 18AWG/SVT 18AWG
Dimensiones (DxH)	ψ191.5mm x 69mm
Embalaje	2.1Kg; 8unidades/18.3Kg/2.09P3

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
