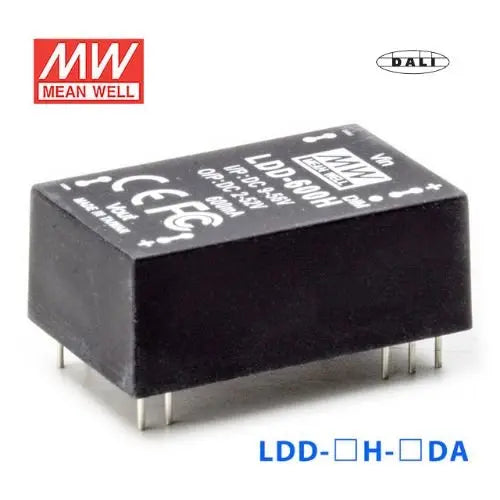

MEAN WELL

LDD-350H-DA

Name: LDD-350H-DA
Brand: MEAN WELL
Price: 17.8 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$17.80

10+

$16.91

20+

$16.55

50+

$16.20

100+

$15.84

200+

$15.49

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

45V

Rated Current

0.35A

Power Rating

15.75W

Waterproof

IP67

Dimensions

1.59 x 0.92 x 0.39 in

Weight

0.04 lbs

Características

Convertidor CC/CC reductor

Salida de corriente constante: 350mA a 1400mA

Amplio voltaje de entrada: 6~50VCC; amplio voltaje de cadena LED de salida: 3~45VCC

Alta eficiencia de hasta el 95%

Filtro EMI incorporado, cumple con BS EN/EN55015 y FCC parte 15 sin filtro de entrada y condensadores adicionales

Control PWM incorporado y ON/OFF remoto

Protecciones: cortocircuito

Refrigeración por convección de aire libre

Completamente encapsulado con nivel IP65

Tamaño compacto

Adecuado para accionar LED de iluminación

3 años de garantía

Especificaciones generales

Precisión de corriente	±5% con entrada de 48 VCC
Protección contra sobretemperatura	Tipo de protección: Apagado, se recupera automáticamente después de que la temperatura disminuye
Eficiencia	95% a plena carga y entrada de 48 VCC
Protección contra cortocircuitos	Regulada a la corriente de salida nominal
Temperatura de trabajo	-40°C a +85°C
CEM	Conformidad con EN55015 clase B, EN61000-4-2,3,4,6,8, EAC TP TC 020
Coeficiente de temperatura	±0,03% / °C
Dimensiones (LxAnxAl) (mm)	40,623,510,1mm o 1,6"0,93"0,40" pulgadas
Material de encapsulado	Epoxi (UL94-V0)

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
