MEAN WELL

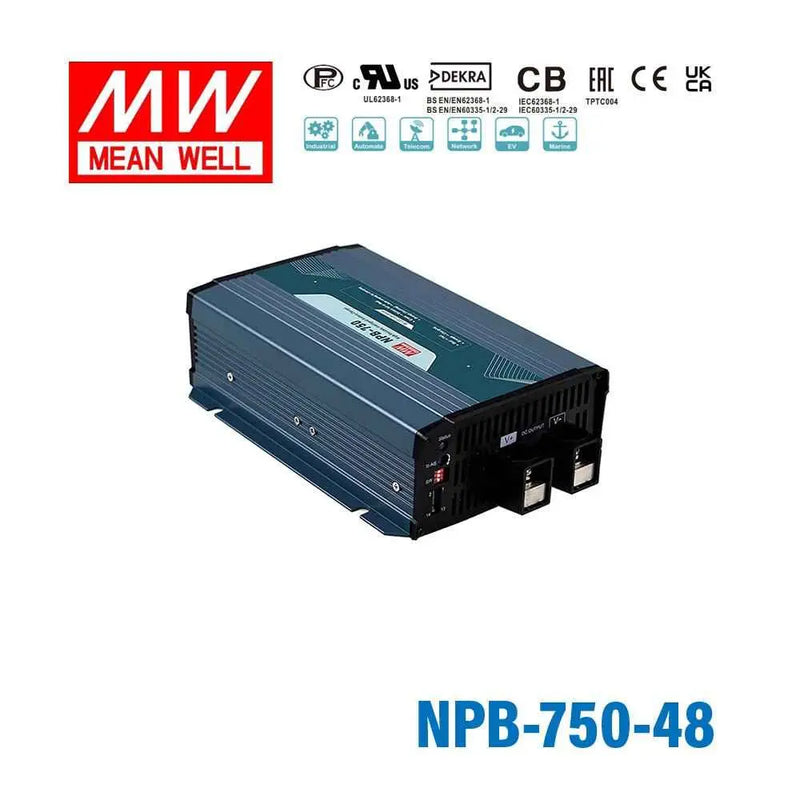

NPB-750-48

Name: NPB-750-48
Brand: MEAN WELL
SKU: 030-532
Price: 233.01 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$233.01

10+

$221.36

20+

$216.70

50+

$212.04

100+

$207.38

200+

$202.72

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

57.6V

Rated Current

11.3A

Power Rating

750W

Waterproof

Non-waterproof

Dimensions

9.05 x 6.22 x 2.63 in

Weight

4.05 lbs

Cargador inteligente de tipo general de alta fiabilidad y amplio rango de salida
Función de detección automática de rango de carga ultra amplio [10,5~21 V, 21~42 V, 42~80 V, 54~100 V (solo NPB-450)]
Protocolo CANbus integrado
El voltaje de carga, la corriente de carga y el tiempo de espera se pueden programar a través del SBP-001
Corriente de carga ajustable a través del panel (50~100 % de la corriente nominal)
4 curvas de carga predeterminadas seleccionables a través de un interruptor DIP en el panel
Carga de 2 o 3 etapas ajustable a través de un interruptor DIP en el panel
NTC para compensación de temperatura (serie ENC)
Ventilador de bajo ruido con control de temperatura
Reducción automática de potencia en caso de sobretemperatura
-30 ~+70oC, amplia temperatura de funcionamiento, limitaciones ambientales minimizadas
Adecuado para baterías de plomo-ácido y litio
Cumple con las certificaciones duales UL/EN 62368-1 e IEC/EN62368-1/-2-29
Asa de transporte opcional (N.º de pedido: Asa de transporte)
3 años de garantía

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
