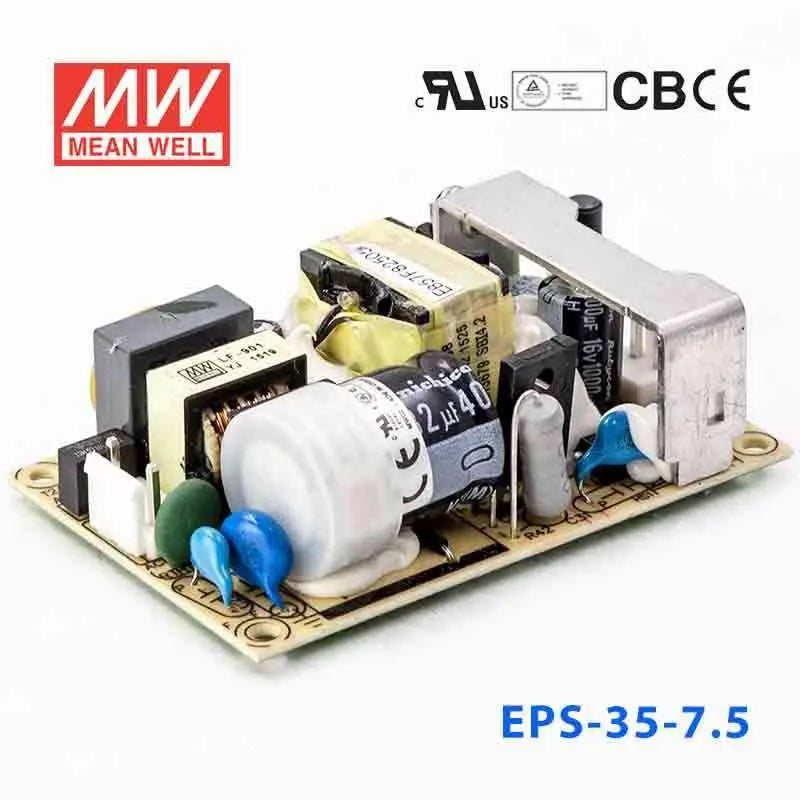

MEAN WELL

EPS-35-7.5

Name: EPS-35-7.5
Brand: MEAN WELL
Price: 16.45 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$16.45

10+

$15.63

20+

$15.30

50+

$14.97

100+

$14.64

200+

$14.31

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

7.5V

Rated Current

4.7A

Power Rating

35.25W

Waterproof

Non-waterproof

Dimensions

3 x 2 x 0.94 in

Weight

0.18 lbs

Características

Entrada universal de CA / Rango completo

Consumo de energía sin carga < 0.3W

Protecciones: Cortocircuito / Sobrecarga / Sobrevoltaje

Alta eficiencia de hasta 90%

Refrigeración por convección de aire libre

Tamaño compacto

Indicador LED de encendido

3 años de garantía

Especificaciones generales

Rango de voltaje de entrada de CA	85~264 VCA; 120~370 VCC
Corriente de entrada de CA (máx.)	Arranque en frío, 40 A a 230 VCA
Rango de ajuste de CC	±10% del voltaje de salida nominal
Rango de protección contra sobrecarga	115%~170% de la potencia de salida nominal
Tipo de protección contra sobrecarga	Modo de hipo, recuperación automática
Protección contra sobrevoltaje	110%~140%
Tensión soportada	E/S-S/S: 3 kVCA, E/S-FG: 2 kVCA, S/S-FG: 0,5 kVCA, 1 minuto
Temperatura de trabajo	-30~+70°C (consulte la curva de reducción de salida)
Normas de seguridad	Aprobado por UL60950-1, TUV EN60950-1
Normas EMC	EN55022 clase B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Conexión	Paso de 3+2P/3.96mm, JST B3P/B2P-VH
Dimensiones (LxAnxAl)	76.2x50.8x24

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
