MEAN WELL

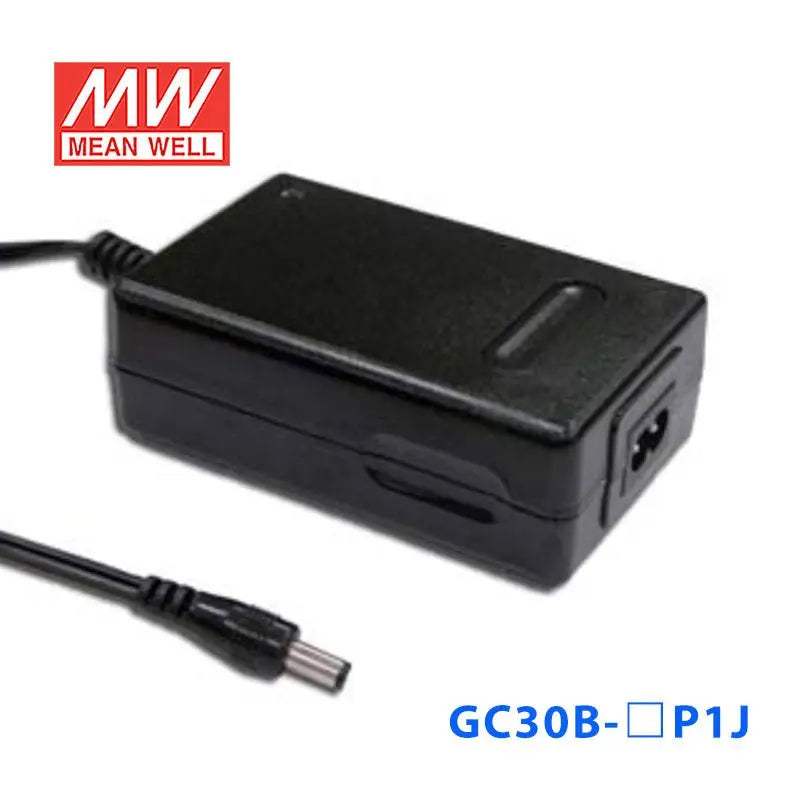

GC30B-0P1J

Name: GC30B-0P1J
Brand: MEAN WELL
Price: 38.08 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$38.08

10+

$36.18

20+

$35.41

50+

$34.65

100+

$33.89

200+

$33.13

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

4.2V

Rated Current

Power Rating

16.8W

Waterproof

Non-waterproof

Dimensions

4.25 x 2.63 x 1.41 in

Weight

0.68 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Características

Entrada universal de CA / Rango completo

Entrada de CA de 2 polos IEC320-C8

Clase II de potencia (sin toma de tierra)

Consumo de energía sin carga < 1.0W

Corriente y voltaje constantes (modo CC, CV)

Adecuado para carga continua

Para equipos de alta corriente de arranque

Protecciones: Cortocircuito / Sobrecarga / Sobrevoltaje / Sobretemperatura.

Indicador LED de 2 colores para el estado de carga

Caja de plástico completamente cerrada

Alta fiabilidad

Aprobaciones: TUV/UL/CUL/CB/FCC/CE

2 años de garantía

Especificaciones Generales

Rango de voltaje de entrada de CA	90~264VAC \| 127~370VDC
Corriente de irrupción de CA	40A / 230VAC
Protección contra sobretensión	110%~135% Apagado y bloqueo de la tensión de salida, volver a encender para recuperar
Voltaje de resistencia	E/S-S/S:3KVAC
Temperatura de trabajo	-0~+50°C (consulte la curva de reducción de potencia)
Normas de seguridad	UL62368-1, CSA22.2, EAC TP TC 004 aprobado
Normas EMC	EN55022 clase B, FCC parte 15 clase B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Dimensiones (LxAnxAl)	108 x 67 x 36 mm
Embalaje	309g; 54pcs / 19kg / CARTÓN

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
