MEAN WELL

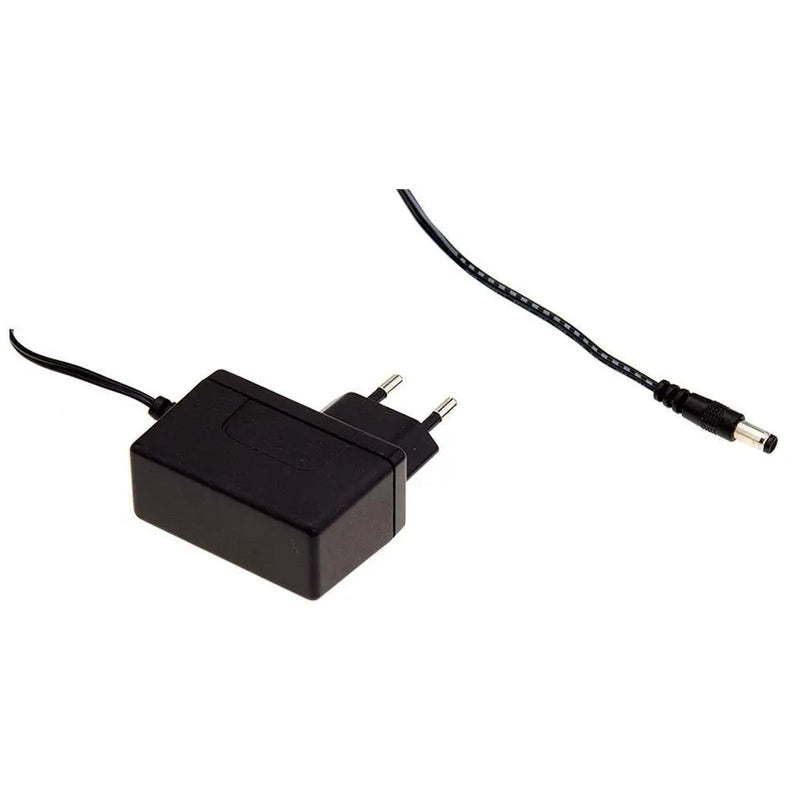

GSM12E15-P1J

Name: GSM12E15-P1J
Brand: MEAN WELL
Price: 21.51 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$21.51

10+

$20.43

20+

$20.00

50+

$19.57

100+

$19.14

200+

$18.71

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

15V

Rated Current

0.8A

Power Rating

12W

Waterproof

Non-waterproof

Dimensions

2.44 x 1.56 x 1.07 in

Weight

0.22 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Características

Entrada de CA universal / Rango completo

Nivel VI de eficiencia energética

Seguridad médica aprobada (2 x MOPP)

Corriente de fuga extremadamente baja

Consumo de energía sin carga < 0.075W(<0.1W para 18V/48V)

Alta eficiencia hasta 87%

Potencia de clase II (sin clavija de tierra)

Protecciones: Cortocircuito / Sobrecarga / Sobrevoltaje

Caja de plástico completamente cerrada

Prueba de quemado al 100% a plena carga

3 años de garantía

Especificaciones generales

Rango de voltaje de entrada de CA	80~264VAC ; 113~370VDC
Corriente de irrupción de CA (máx.)	Arranque en frío, 60A a 230VAC
Protección contra sobrecarga	110%~200% del voltaje de salida nominal, modo hipo, recuperación automática
Voltaje de resistencia	I/P-O/P: 5656VDC
Temperatura de trabajo	-20~+70°C
Estándares de seguridad	TUV EN60601-1, EN60601-1-11 aprobado
Estándares EMC	EN55011(CISPR11) clase B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11,EN60601-1-2,EN55024,EN61204-3
Longitud del cable de salida	100cm de UL2468, 18AWG para 5~7.5V; 120cm de UL2468, 22AWG para 9V; 180cm de UL2468, 24AWG para 12V~48V
Dimensiones (LxAnxAl)	62.2 x 27.4 x 39.7mm
Enchufe de CC estándar	P1J: 2.1øx5.5øx11mm / C+, tipo horquilla
Embalaje	90uds/10Kg

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
