MEAN WELL

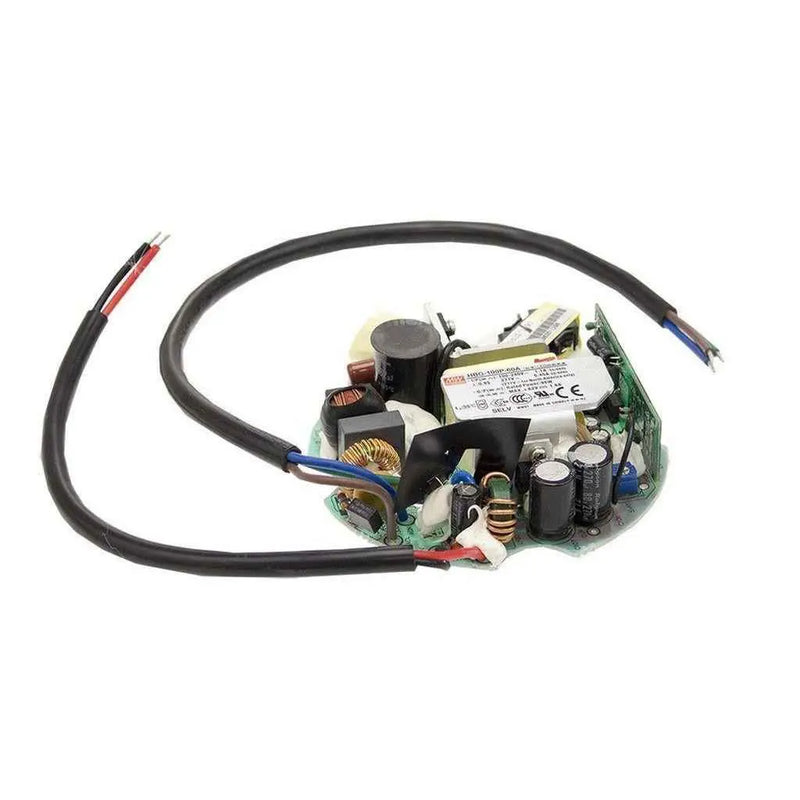

HBG-100P-36A

Name: HBG-100P-36A
Brand: MEAN WELL
Price: 82.44 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$82.44

10+

$78.32

20+

$76.67

50+

$75.02

100+

$73.37

200+

$71.72

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

37V

Rated Current

2.7A

Power Rating

97.2W

Waterproof

IP65

Dimensions

5.11 x 5.11 x 2.61 in

Weight

2.60 lbs

Características

Salida en modo de corriente constante

Diseño de tipo PCB de forma circular con diseño de clase II

Función PFC activa integrada

Unidad de potencia de clase 2

Vida útil típica > 50000 horas

5 años de garantía

Especificación general

Rango de voltaje de entrada de CA	90~295 VCA 127~417 VCC
Corriente de entrada de CA (máx.)	Arranque en frío, 45 A a 230 VCA
Rango de ajuste de CC	65%~100% de corriente nominal
Protección contra sobrecorriente	Modo de hipo, recuperación automática
Voltaje de resistencia	E/S - S/P: 3,75 kVCA
Temperatura de trabajo	-40~+70°C
Estándares de seguridad	BS EN/EN61347-1, BS EN/EN61347-2-13
Estándares EMC	EN55015, EN61000-3-2 Clase C, EN61000-3-3
Conexión	UL1015 18AWG
Dimensión (DxH)	φ99x26
Embalaje	45 piezas/10,4 kg

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
