MEAN WELL

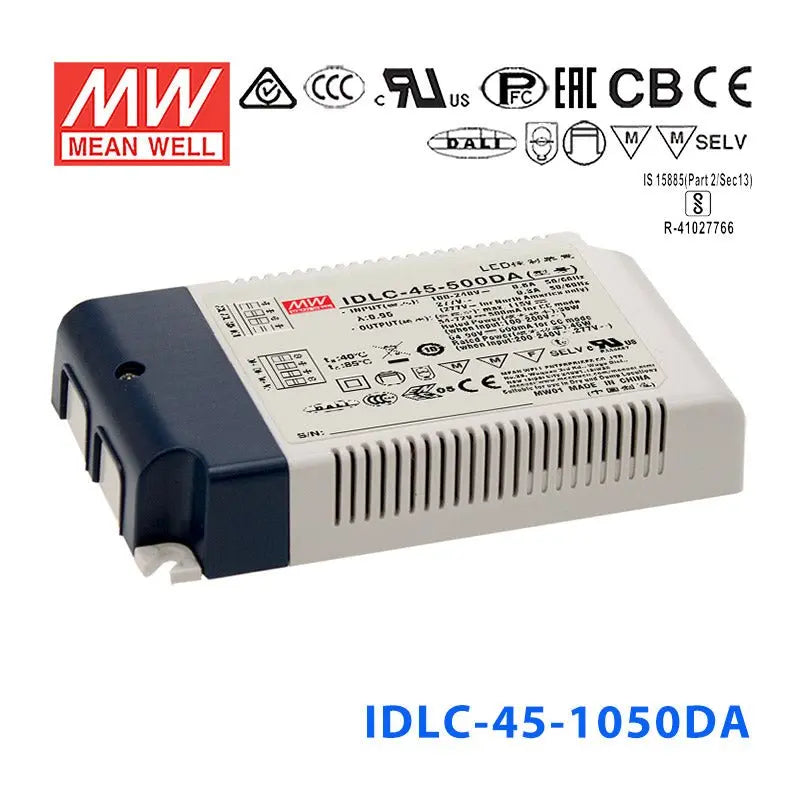

IDLC-45-1050DA

Name: IDLC-45-1050DA
Brand: MEAN WELL
Price: 26.38 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$26.38

10+

$25.06

20+

$24.53

50+

$24.01

100+

$23.48

200+

$22.95

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

43V

Rated Current

1.05A

Power Rating

45.15W

Waterproof

Non-waterproof

Dimensions

4.72 x 2.95 x 0.98 in

Weight

0.48 lbs

Características

Salida en modo de corriente constante

Diseño sin parpadeo

Carcasa de plástico con diseño clase II

Función PFC activo incorporada

Consumo de energía sin carga <0.5W (Tipo-Blanco)

Opciones de función: atenuación 2 en 1 (atenuación hasta apagado); Salida de CC auxiliar

3 años de garantía

Especificación general

Cortocircuito	Modo de hipo, se recupera automáticamente después de que se elimina la condición de falla
Tensión de aislamiento	I/P-O/P:3.75KVCA
Temperatura de trabajo	T caja=-20 ~ +85°C (Consulte la sección CARGA DE SALIDA vs TEMPERATURA)
Estándares de seguridad	UL8750,CSA C22.2 NO.250.13-12;ENEC EN61347-1 & EN61347-2-13 independiente, EN62384, GB19510.1, GB19510.14 aprobado
Estándares EMC	Cumplimiento con EN55015, EN61000-3-2 Clase C (carga) ; EN61000-3-3, GB17743, GB17625.1
Dimensiones (LxAnxAl)(mm)	120 x 75 x 25 mm

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
