MEAN WELL

ODLV-65-48

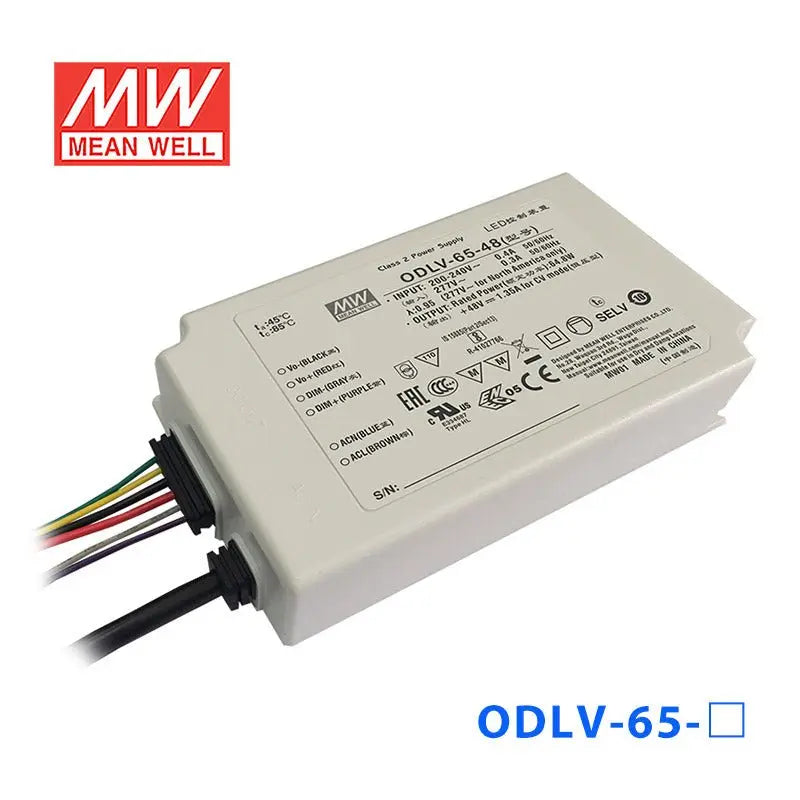

Name: ODLV-65-48
Brand: MEAN WELL
Price: 32.74 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$32.74

10+

$31.10

20+

$30.45

50+

$29.79

100+

$29.14

200+

$28.48

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

48V

Rated Current

1.35A

Power Rating

64.8W

Waterproof

IP67

Dimensions

4.76 x 3.03 x 1.12 in

Weight

0.94 lbs

Características

Salida de estilo PWM de voltaje constante con frecuencia de 1 KHz

Carcasa de plástico con diseño de clase II

Función PFC activa incorporada

Consumo de energía sin carga <0.5W (tipo en blanco)

Clasificación IP67 para instalaciones interiores o exteriores

Opciones de función: atenuación 2 en 1 (dim-to-off); Salida de CC auxiliar

3 años de garantía

Especificaciones generales

Rango de voltaje de entrada de CA	180~295 VCA
Corriente de irrupción de CA (típ.)	ARRANQUE EN FRÍO 30 A (t-ancho = 270 μs medido al 50% de Ipeak) a 230 VCA; Según NEMA 410
Protección contra cortocircuitos	Apagar el voltaje de salida, volver a encender para recuperar
Protección contra sobrecorriente	105~115 %
Tiempo de configuración	500 ms / 230 VCA
Voltaje soportado	E/S-S/S: 3.75 kVA
Temperatura de trabajo	-20~+85 ºC
Normas de seguridad	UL8750, ENEC EN61347-1, EN61347-2-13
Normas EMC	EN55015, EN61000-3-2 clase C, EN61000-3-3, EAC TP TC 020
Dimensiones (LxAnxAl)(mm)	1217728.5mm
Embalaje	24 piezas/11 kg

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
