MEAN WELL

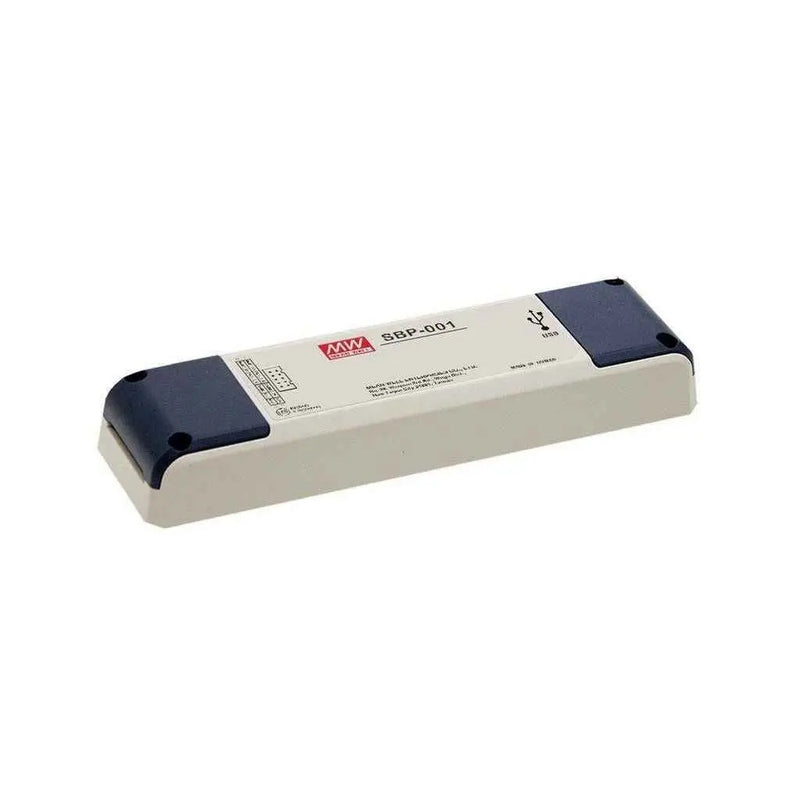

SBP-001

Name: SBP-001
Brand: MEAN WELL
Price: 58.9 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$58.90

10+

$55.96

20+

$54.78

50+

$53.60

100+

$52.42

200+

$51.24

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Waterproof

Non-waterproof

Dimensions

6.49 x 1.81 x 0.90 in

Weight

0.26 lbs

Características

Para el cargador de batería inteligente de MEAN WELL

Conexión y configuración sencillas

No necesita batería ni alimentación de CA

Indicador de estado LED

Cables de comunicación de SBP#1, SBP#2, SBP#3, SBP#4 incluidos (el cable USB tipo A a Mini USB no está incluido)

Especificación general

Interfaz de comunicación para PC	Mini USB
Interfaz de programación de comunicación	PMBus, CANBus, UART
Indicador LED	Verde: interfaz de 3.3V Naranja: interfaz de 5V
Vibración	10~500Hz, 2G 10min./1 ciclo, período de 60min, cada uno a lo largo de los ejes X, Y, Z
Temperatura de funcionamiento	0~+40ºC
Estándares de seguridad	UL62368-1 CB, EAC TP TC 004 aprobados
Estándares EMC	EN55032 clase B, EN61000-3-2, -3, EAC TP TC020
Número de caja	DAP-04
Dimensión (LxAnxAl) (mm)	165x46x23
Embalaje	84 unidades/11 kg

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
