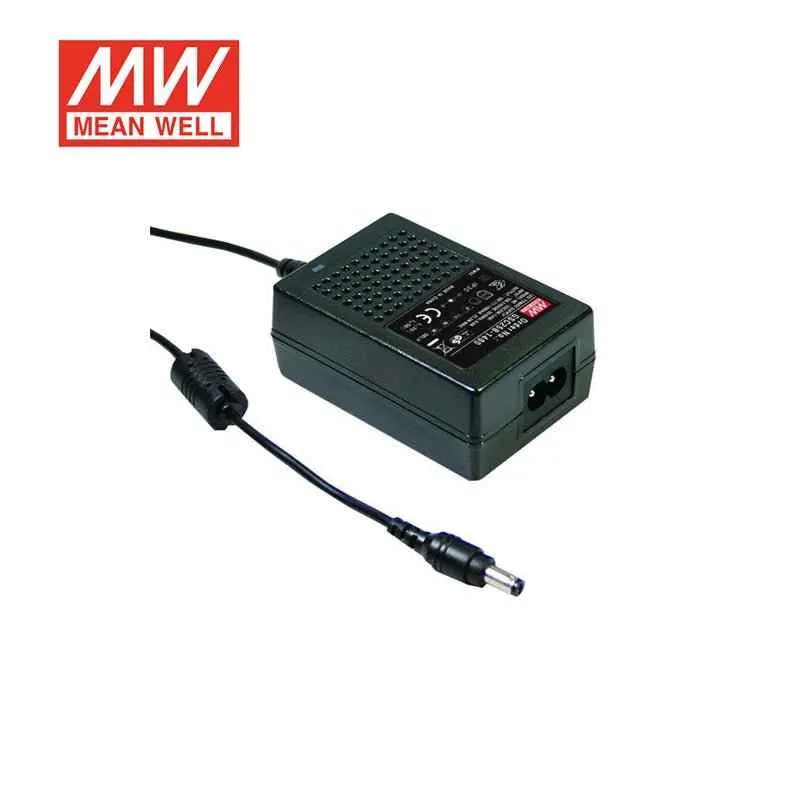

MEAN WELL

GSC25B-1050

Name: GSC25B-1050
Brand: MEAN WELL
Price: 10.27 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$10.27

10+

$9.76

20+

$9.55

50+

$9.35

100+

$9.14

200+

$8.93

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

35V

Rated Current

1.05A

Power Rating

25.2W

Waterproof

Non-waterproof

Dimensions

3.11 x 2.12 x 1.29 in

Weight

0.46 lbs

Características

Entrada de CA universal / Rango completo (hasta 227 VCA)

Entrada de CA de 2 polos IEC320-C8

Función PFC activa integrada

Diseño de corriente constante

Protección: Cortocircuito

Refrigeración por convección de aire libre

Carcasa de plástico completamente aislada

Unidad de potencia Clase II, sin FG

Consumo de energía sin carga < 0,15 W

Bajo costo, alta confiabilidad

Prueba de quemado al 100% a plena carga

3 años de garantía

Especificación general

Tipo de protección contra cortocircuitos	Modo intermitente, se recupera automáticamente después de que se elimina la condición de falla
Tensión de resistencia	E/S: 3,75 KVCA
Resistencia de aislamiento	E/S: 100 M ohmios / 500 VCC / 25 / 70% HR
Temperatura de trabajo	-30 ~ +50 ℃ (Consulte la "Curva de reducción")
Normas de seguridad	Dekra GS/ENEC EN61347-1, EN61347-2-13 listado, EN62384, GB19510.1, GB19510.14, aprobado
Dimensiones (LxAnxAl) (mm)	795433mm (LAnAl)
Embalaje	211 g; 60 unidades / 13,7 kg / CARTÓN

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
