MEAN WELL

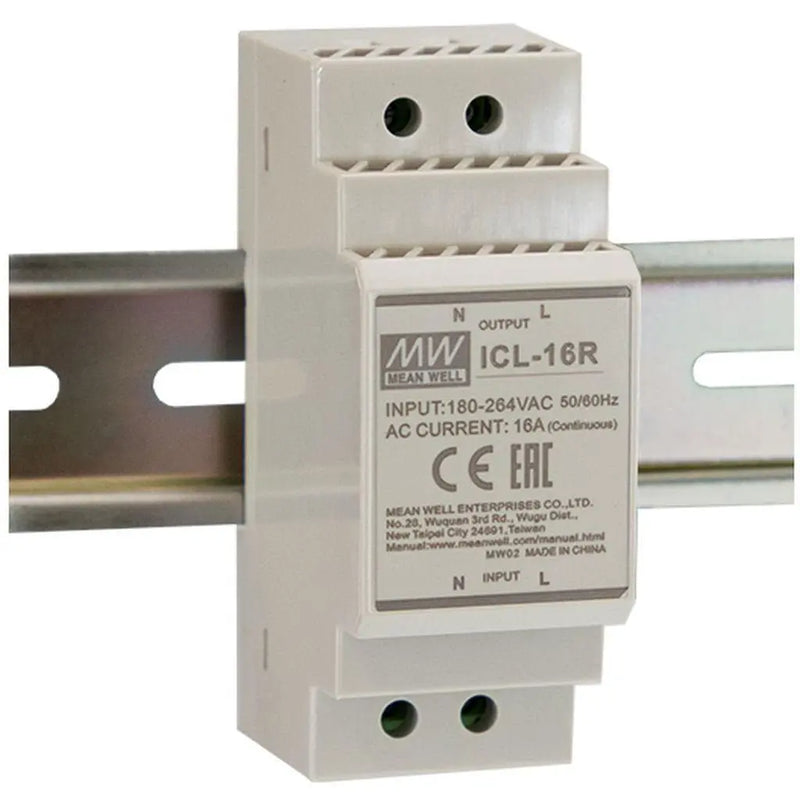

ICL-16R

Name: ICL-16R
Brand: MEAN WELL
Price: 58.3 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$58.30

10+

$55.39

20+

$54.22

50+

$53.05

100+

$51.89

200+

$50.72

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Rated Current

16A

Waterproof

Non-waterproof

Dimensions

3.54 x 2.14 x 1.37 in

Weight

0.25 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Características

23A corriente de arranque limitada, 16A continua

Entrada de CA de 180~264 VCA

Relé de derivación integrado, no un simple NTC

Protección térmica interna

Temperatura de trabajo amplia de -30~+70°C

Instalado en carril DIN TS-35/7.5 o 15

3 años de garantía

Especificaciones generales

Tensión de entrada de CA	180~264VAC
Corriente de irrupción limitada	23A
Potencia de entrada de CA	3680VA
Protección interna	Fusible térmico que protege contra sobrecarga e incendio
Temperatura de trabajo	-30~+70°C
Altitud de funcionamiento	5000 metros
Normas de seguridad	LVD BS EN/EN62368-1 aprobado
Estándares EMC	EN55032 clase B, EN61000-4-2,3,4,5,6,8,11
N.º de caja	ICL-16R
Dimensiones (LxAnxAl)	35x90x54.5
Embalaje	96uds / 12,2kg

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
