MEAN WELL

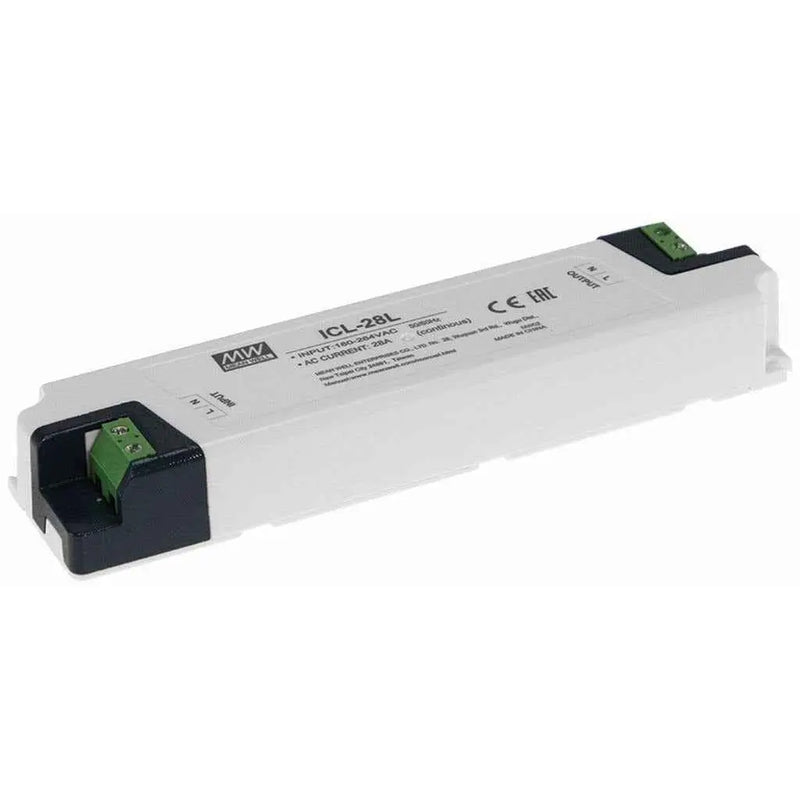

ICL-28L

Name: ICL-28L
Brand: MEAN WELL
Price: 77.91 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$77.91

10+

$74.01

20+

$72.46

50+

$70.90

100+

$69.34

200+

$67.78

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Rated Current

28A

Waterproof

Non-waterproof

Dimensions

6.88 x 1.65 x 0.94 in

Weight

0.34 lbs

Características

48A de corriente de irrupción limitada, 28A continua

Entrada de CA de 180~264 VCA

Relé de bypass integrado, sin NTC simple

Protección térmica interna

Amplia temperatura de trabajo de -30~+70 °C

Tipo de terminal con tornillos

3 años de garantía

Especificaciones generales

Voltaje de entrada de CA	180~264 VCA
Corriente de irrupción limitada	48 A
Potencia de entrada de CA6440	VA
Protección interna	Fusible térmico que protege contra sobrecarga y fuego
Temperatura de trabajo	-30~+70 °C
Altitud de funcionamiento	5000 metros
Estándares de seguridad	Aprobado según LVD BS EN/EN62368-1
Estándares EMC	EN55032 clase B, EN61000-4-2,3,4,5,6,8,11
Número de carcasa	PLM-40
Dimensión (LxAxAl)	175x42x24
Embalaje	84 piezas / 14 kg

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
