MEAN WELL

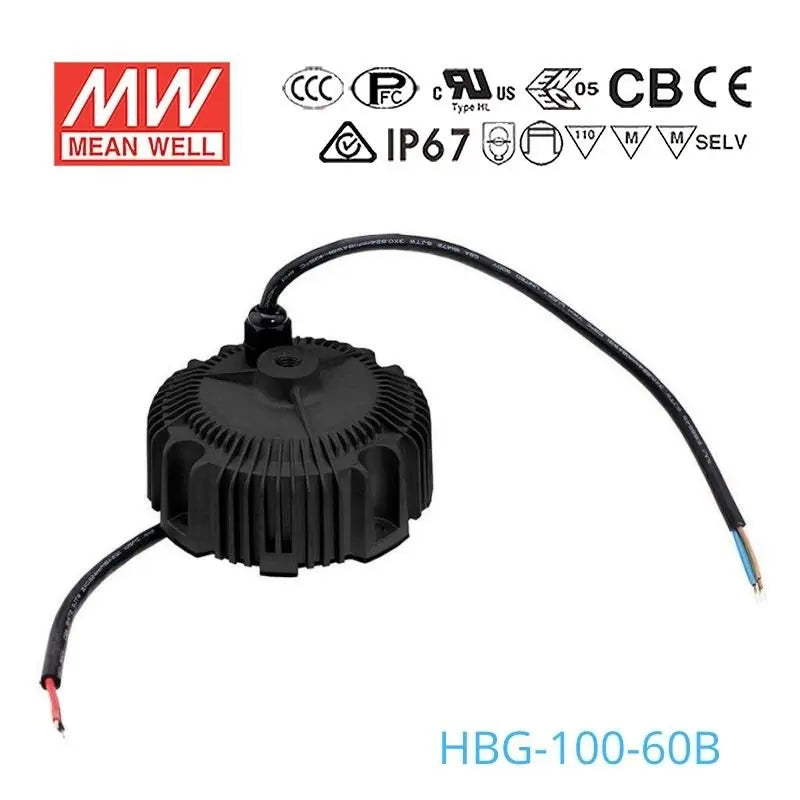

HBG-100-60B

Name: HBG-100-60B
Brand: MEAN WELL
Price: 51.39 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$51.39

10+

$48.82

20+

$47.79

50+

$46.76

100+

$45.74

200+

$44.71

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

62V

Rated Current

1.6A

Power Rating

96W

Waterproof

IP67

Dimensions

5.11 x 5.11 x 2.61 in

Weight

2.60 lbs

Características

Salida en modo de corriente constante

Carcasa de plástico circular con diseño de clase II

Función PFC activo incorporada

Unidad de potencia Clase 2

Vida útil típica >50000 horas

5 años de garantía

Especificación general

Rango de tensión de entrada CA	90~305 V CA 127~431 V CC
Corriente de irrupción CA (máx.)	Arranque en frío, 60 A a 230 V CA
Rango de ajuste de CC	65%~100% de la corriente nominal
Protección contra sobrecorriente	95 ~ 108%; Limitación de corriente constante
Tensión soportada	E/S-S/S: 3,75 kV CA E/S-FG: 2 kV CA S/S-FG: 0,5 kV CA
Temperatura de funcionamiento	-40~+85 °C
Normas de seguridad	UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independiente, BS EN/EN62384; GB19510.14, GB19510.1, EAC TP TC 004 aprobado
Normas EMC	EN55015, EN61000-3-2 Clase C, EN61000-4-2,3,4,5,6,8,11,
Conexión	SJTW 18AWG/SVT 18AWG
Dimensiones (DxH)	φ130x66,5
Embalaje	1,18 kg; 12 unidades/15,7 kg/1,43 pies cúbicos (tipo A/B/en blanco), 1,89 pies cúbicos (tipo E)

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
