MEAN WELL

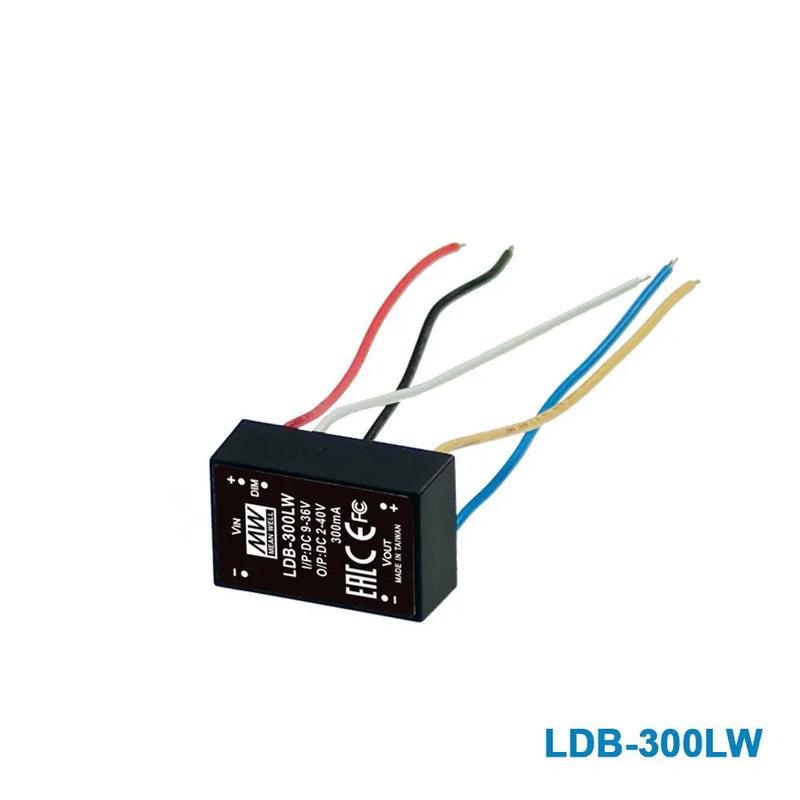

LDB-300LW

Name: LDB-300LW
Brand: MEAN WELL
Price: 14.18 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$14.18

10+

$13.47

20+

$13.19

50+

$12.90

100+

$12.62

200+

$12.34

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

40V

Rated Current

0.3A

Power Rating

12W

Waterproof

IP67

Dimensions

1.25 x 0.79 x 0.48 in

Weight

0.04 lbs

Características

Convertidor DC/DC elevador-reductor

Salida de corriente constante: 300mA a 600mA

Amplio voltaje de entrada: 9~36VDC

Amplio voltaje de cadena de LED de salida: 2~40VDC

Alta eficiencia hasta 91%

Cumple con BS EN/EN55015 y FCC parte 15

Control PWM incorporado y ON/OFF remoto

Protecciones: Cortocircuito/Sobretemperatura

Refrigeración por convección de aire libre

Totalmente encapsulado con nivel IP67 para estilo de pines y cables

Tamaño compacto

Alta fiabilidad

Adecuado para accionar iluminación LED

3 años de garantía

Especificación general

Precisión de corriente	±5%
Protección contra sobretemperatura	Apagado, recuperación automática
Eficiencia	90% (típica)
Protección contra cortocircuitos	Regulada a la corriente de salida nominal
Temperatura de trabajo	-40°C a +70°C
EMC	Cumple con EN55015 clase B, EN61000-4-2,3,4,6,8, EAC TP TC 020
Coeficiente de temperatura	±0.03% / °C
Dimensiones (LxAnxAl) (mm)	31.8x20.3x12.2mm
Material de encapsulado	Epoxi (UL94-V0)
