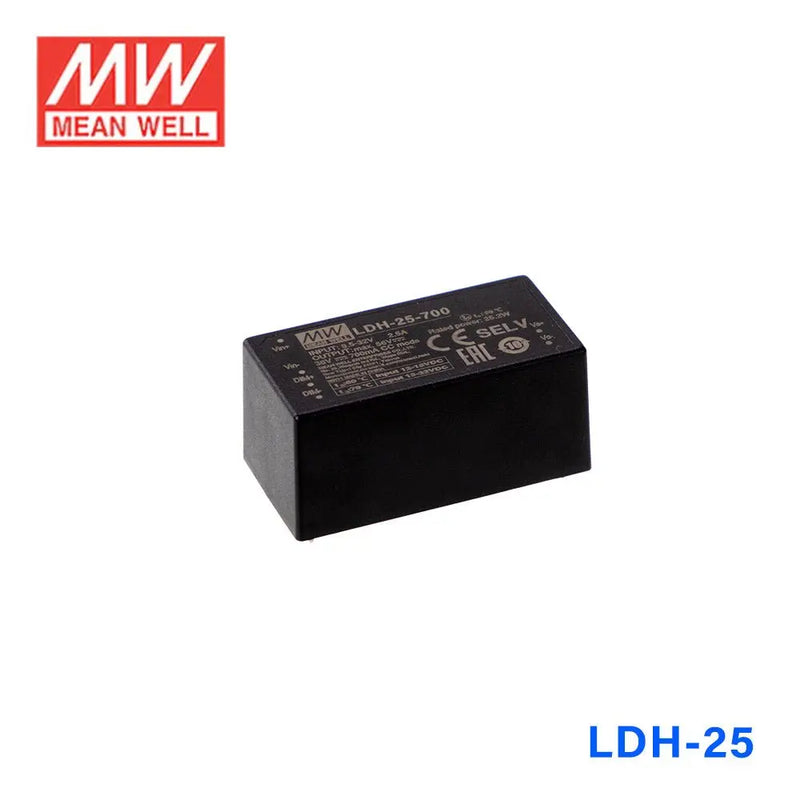

MEAN WELL

LDH-25-250

Name: LDH-25-250
Brand: MEAN WELL
Price: 10.49 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$10.49

10+

$9.97

20+

$9.76

50+

$9.55

100+

$9.34

200+

$9.13

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

84V

Rated Current

0.25A

Power Rating

21W

Waterproof

Non-waterproof

Dimensions

2.06 x 1.07 x 0.94 in

Weight

0.11 lbs

Características

Amplio funcionamiento con voltaje de entrada CC de 9,5~32 V

Convertidor elevador DC/DC

Salida de corriente constante: 250mA a 700mA

Amplio voltaje de LED de salida directa de hasta 84V CC

Alta eficiencia de hasta 95,5%

Atenuación 2 en 1 (0-10 V, PWM)

Protecciones: Cortocircuito / Sobrevoltaje

Refrigeración por convección de aire libre

Totalmente encapsulado

3 años de garantía

Especificaciones generales

Precisión de corriente	±5%
Protección contra sobretensión	hasta 140% del voltaje de salida
Eficiencia	95,5%
Protección contra cortocircuitos	Cortocircuito de salida, la fuente de alimentación se dañará
Temperatura de trabajo	-40°C a +70°C
EMC	Cumplimiento con EN55015, EN61000-4-2,3,4,6,8, EAC TP TC 020
Coeficiente de temperatura	±0,03% / °C
Dimensiones (LxAnxAl) (mm)	52,4x27,2x24
Embalaje	200 unidades/11Kg

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
