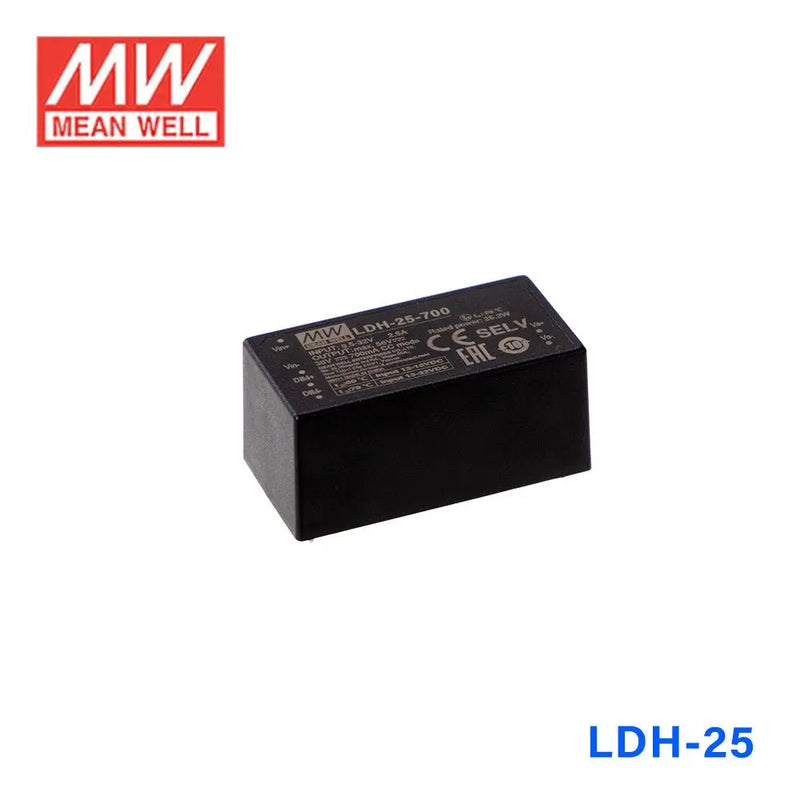

MEAN WELL

LDH-25-350

Name: LDH-25-350
Brand: MEAN WELL
Price: 10.49 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$10.49

10+

$9.97

20+

$9.76

50+

$9.55

100+

$9.34

200+

$9.13

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

72V

Rated Current

0.35A

Power Rating

25.2W

Waterproof

Non-waterproof

Dimensions

2.06 x 1.07 x 0.94 in

Weight

0.11 lbs

Características

Amplio rango de voltaje de entrada de CC 9.5~32V

Convertidor CC/CC elevador

Salida de corriente constante: 250mA a 700mA

Amplio voltaje directo de salida para LED de hasta 84V CC

Alta eficiencia de hasta 95.5%

Atenuación 2 en 1 (0-10V, PWM)

Protecciones: Cortocircuito/Sobrevoltaje

Enfriamiento por convección natural

Totalmente encapsulado

3 años de garantía

Especificación general

Precisión de corriente	±5%
Protección contra sobrevoltaje	hasta 140% del voltaje de salida
Eficiencia	95.5%
Protección contra cortocircuitos	Cortocircuito en la salida, la fuente de alimentación se dañará
Temperatura de trabajo	-40°C a +70°C
EMC	Conformidad con EN55015, EN61000-4-2,3,4,6,8, EAC TP TC 020
Coef. de temperatura	±0.03% / °C
Dimensiones (LxAnxAl) (mm)	52.4x27.2x24
Embalaje	200 unidades/11Kg
