MEAN WELL

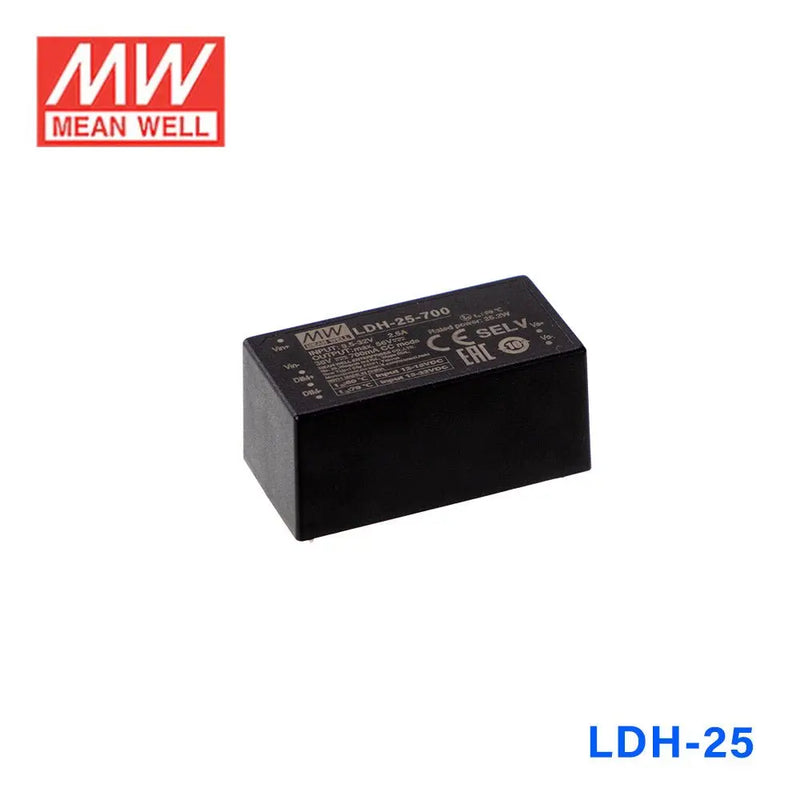

LDH-25-700

Name: LDH-25-700
Brand: MEAN WELL
Price: 10.49 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$10.49

10+

$9.97

20+

$9.76

50+

$9.55

100+

$9.34

200+

$9.13

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

36V

Rated Current

0.7A

Power Rating

25.2W

Waterproof

Non-waterproof

Dimensions

2.06 x 1.07 x 0.94 in

Weight

0.11 lbs

Características

Amplio rango de operación de voltaje de entrada DC 9.5~32V

Convertidor DC/DC elevador

Salida de corriente constante: 250mA a 700mA

Amplio voltaje directo de LED de salida hasta 84V DC

Alta eficiencia hasta 95.5%

Regulación 2 en 1 (0-10V, PWM)

Protecciones: Cortocircuito/Sobrevoltaje

Refrigeración por convección de aire libre

Completamente encapsulado

3 años de garantía

Especificación general

Precisión de corriente	±5%
Protección contra sobrevoltaje	hasta 140% del voltaje de salida
Eficiencia	95.5%
Protección contra cortocircuitos	Cortocircuito de salida, la fuente de alimentación se dañará
Temperatura de trabajo	-40°C a +70°C
CEM	Conformidad con EN55015, EN61000-4-2,3,4,6,8, EAC TP TC 020
Coef. de temperatura	±0.03% / °C
Dimensión (LxAnxAl) (mm)	52.4x27.2x24
Embalaje	200 unidades/11 kg

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
