MEAN WELL

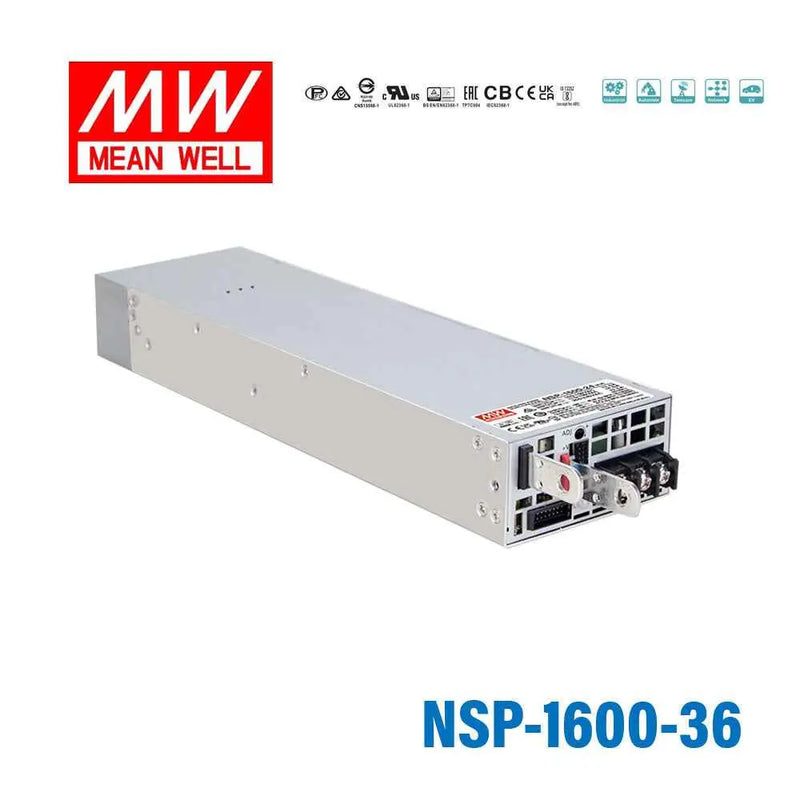

NSP-1600-36

Name: NSP-1600-36
Brand: MEAN WELL
Price: 473.7 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$473.70

10+

$450.02

20+

$440.54

50+

$431.07

100+

$421.59

200+

$412.12

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

36V

Rated Current

44.5A

Power Rating

1602W

Waterproof

Non-waterproof

Dimensions

11.81 x 3.34 x 1.61 in

Weight

3.96 lbs

Características de la serie NSP-1600:

La NSP-1600 es una fuente de alimentación AC/DC de tipo cerrado de salida única de 1.6KW con un perfil bajo de 1U y una alta densidad de potencia de hasta 20W/pulgada.

Características:

Entrada universal AC/rango completo
Función PFC activa incorporada
Alta eficiencia hasta 92%
Refrigeración por aire forzado mediante ventilador DC incorporado
Nivel de tensión de salida programable
Control remoto ON-OFF/sensor remoto/alimentación auxiliar/señal DC OK integrados
Protecciones: cortocircuito/sobrecarga/sobretensión/sobretemperatura
Diseño conforme a SEMI F47
5 años de garantía
