MEAN WELL

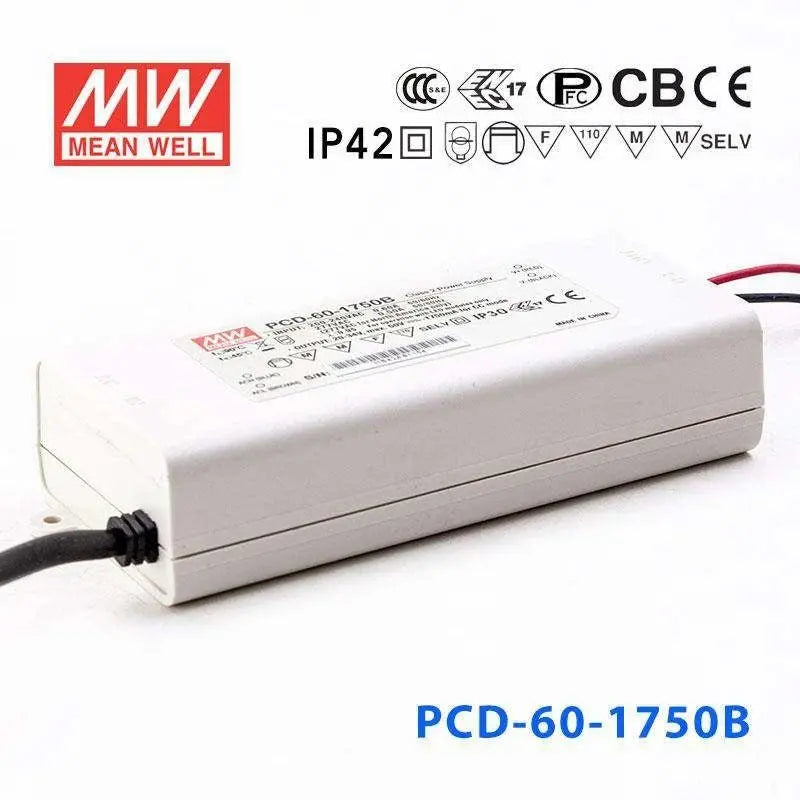

PCD-60-1750B

Name: PCD-60-1750B
Brand: MEAN WELL
Price: 30.93 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$30.93

10+

$29.38

20+

$28.76

50+

$28.15

100+

$27.53

200+

$26.91

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

34V

Rated Current

1.75A

Power Rating

59.5W

Waterproof

Non-waterproof

Dimensions

5.03 x 2.36 x 1.24 in

Weight

0.77 lbs

Características

Regulación de fase de CA, funciona con atenuadores TRIAC de vanguardia y de final de fase

Entrada de 115 VCA o 230 VCA

Protecciones: Cortocircuito / Sobretemperatura

Diseño de corriente constante

Unidad de potencia de Clase 2 / Pasa LPS

Clase de aislamiento II, sin FG

Carcasa de plástico completamente aislada

Refrigeración por convección de aire libre

Función PFC activa incorporada

Diseño IP42

3 años de garantía

Especificaciones generales

Rango de tensión de entrada de CA	115 VCA (90 ~ 135 VCA) o 230 VCA (180 ~ 295 VCA)
Corriente de entrada de CA (máx.)	Arranque en frío, 10 A a 230 VCA
Tensión de resistencia	I / P - O / P: 3.75 k VAC
Temperatura de trabajo	-30 ~ + 60ºC (consultar curva de reducción de potencia de salida)
Estándares de seguridad	ENEC EN61347-1, EN61347-2-13 independiente, EN62384 aprobado
Estándares EMC	EN55015, EN61000-3-2 clase C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Conexión de entrada	H03VVH2-F 0.75mm²x2C (7.5cm)
Conexión de salida	UL1430 18AWGx2C (15cm)
Dimensiones (LxAnxAl) (mm)	128x 60x 31.5

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
