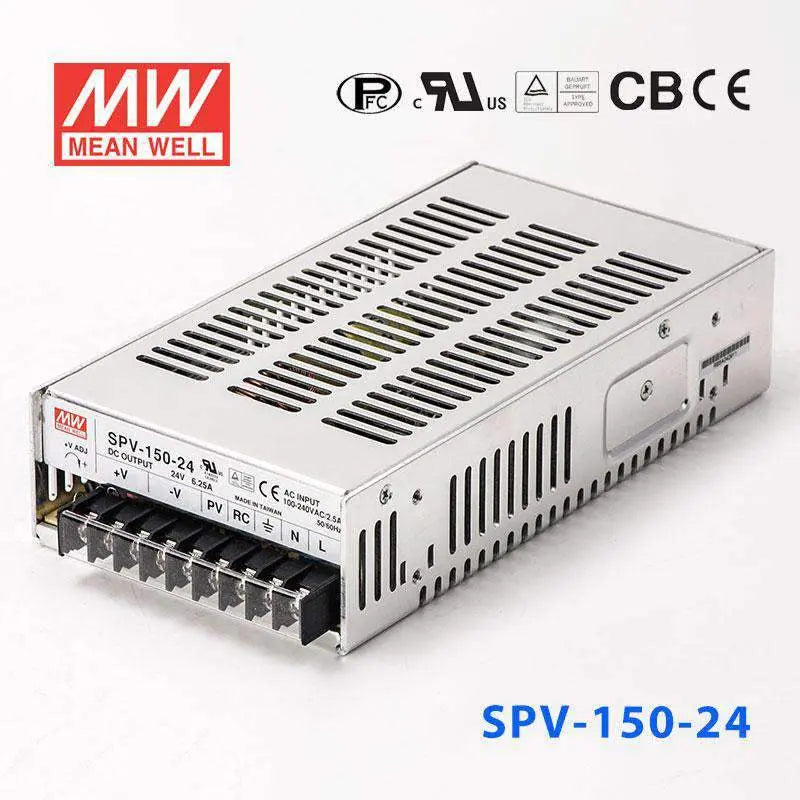

MEAN WELL

SPV-150-24

Name: SPV-150-24
Brand: MEAN WELL
Price: 85.83 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$85.83

10+

$81.54

20+

$79.82

50+

$78.11

100+

$76.39

200+

$74.67

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

24V

Rated Current

6.25A

Power Rating

150W

Waterproof

Non-waterproof

Dimensions

8.46 x 4.52 x 1.96 in

Weight

2.42 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Las fuentes de alimentación de la serie MEAN WELL SPV-150 son fuentes de alimentación conmutadas de 150 W con alta eficiencia, larga vida útil y alta fiabilidad.

Características

Entrada de CA universal / Rango completo
Función PFC activa integrada
PF>0,94
Protecciones: Cortocircuito / Sobrecarga / Sobretensión / Sobretemperatura
Refrigeración por convección de aire libre
Voltaje de salida programable del 20-110% mediante señal de control externa de 1-5,5 VCC
Control ON-OFF remoto integrado
Frecuencia de conmutación fija a 100 KHz
3 años de garantía

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
