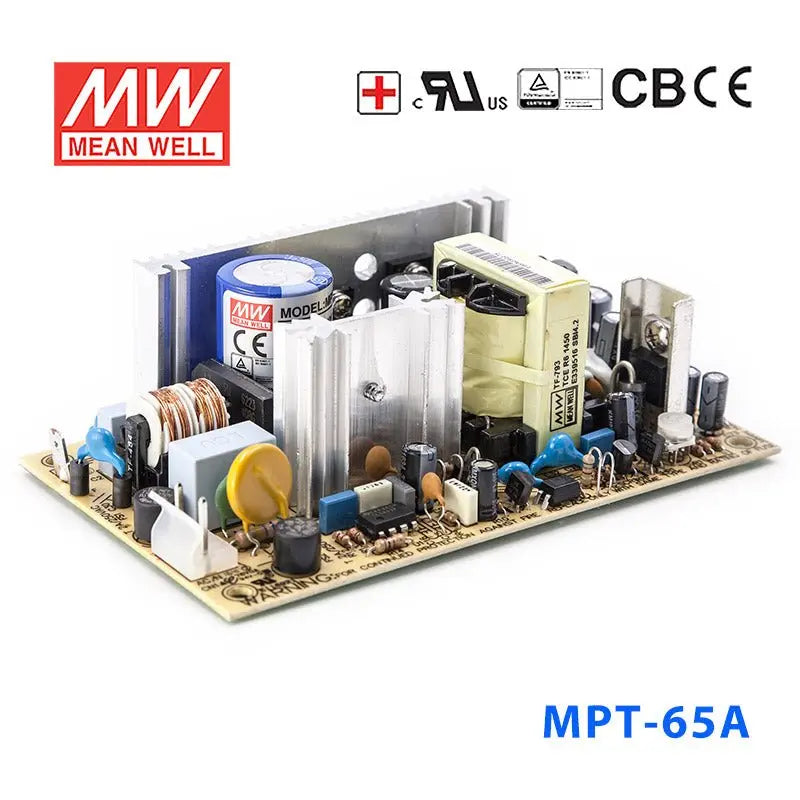

MEAN WELL

MPT-65A

Name: MPT-65A
Brand: MEAN WELL
Price: 60.56 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$60.56

10+

$57.53

20+

$56.32

50+

$55.11

100+

$53.90

200+

$52.69

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

Rated Current

5.5A

Power Rating

60W

Waterproof

Non-waterproof

Dimensions

5 x 2.99 x 1.65 in

Weight

0.59 lbs

Características

Entrada de CA universal / Rango completo

Baja corriente de fuga <0.5mA

Protecciones: Cortocircuito/ Sobrecarga/ Sobre voltaje

Enfriamiento por convección natural de aire

Prueba de quemado al 100% a plena carga

Frecuencia de conmutación fija a 65KHz

2 años de garantía

Especificaciones generales

Rango de voltaje de entrada de CA	90~264VAC; 127~370VDC
Corriente de irrupción de CA	Arranque en frío 15A/115VAC
Corriente de fuga	<0.75mA
Protección contra sobrecarga	121% ~ 158% de la potencia de salida nominal
Protección contra sobretensión	115%~135% del voltaje de salida nominal
Tiempo de configuración, subida y retención	800ms, 20ms, 60ms
Voltaje de resistencia	I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
Temperatura de trabajo	-10~+60°C
Vibración	10~500Hz, 2G 10min./1ciclo, período de 60min. Cada uno a lo largo de los ejes X, Y, Z
Normas de seguridad	UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 aprobado
Normas EMC	EN55032 clase B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,11
Conexión	E/S: 2 pines Molex 5722-02, S/S: 8 pines Molex 5273-08
Dimensiones (Largo x Ancho x Alto)	127x76x42
Embalaje	54 unidades / 15.9kg

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
