MEAN WELL

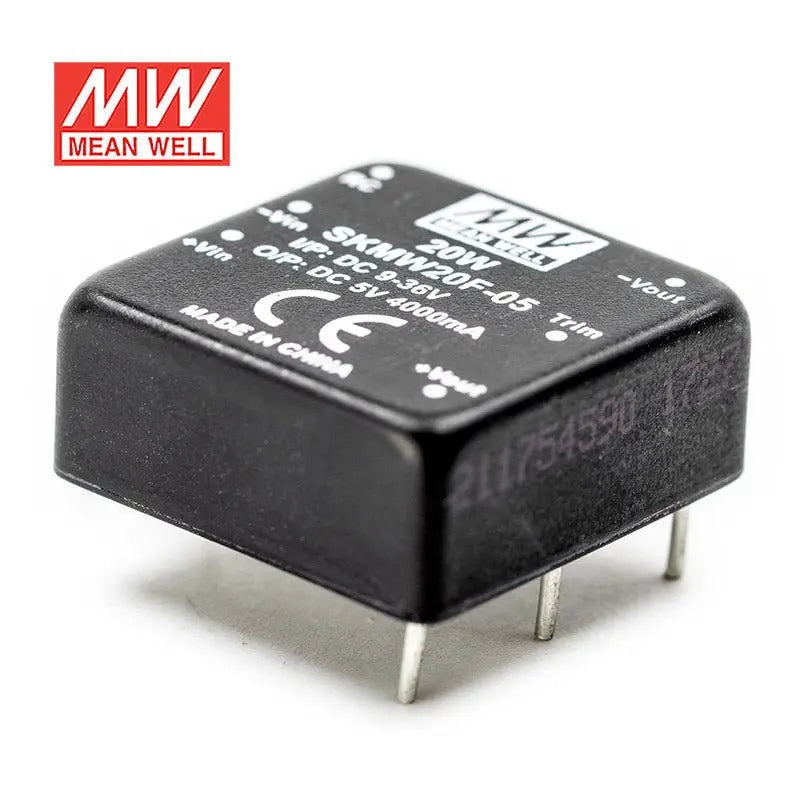

SKMW20F-05

Name: SKMW20F-05
Brand: MEAN WELL
Price: 27.96 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$27.96

10+

$26.56

20+

$26.00

50+

$25.44

100+

$24.88

200+

$24.33

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

Rated Current

Power Rating

20W

Waterproof

Non-waterproof

Dimensions

1 x 1 x 0.40 in

Weight

0.03 lbs

Características

Paquete DIP de 1"x1" con pinout estándar de la industria

Rango de temperatura de funcionamiento -40~+85°C

Rango de entrada ultra amplio 4:1

No requiere carga mínima

Cumple con BS EN/EN55032 Clase A radiada sin componentes adicionales

Alta eficiencia de hasta 89%

Protección: Cortocircuito (continuo)/Sobrecarga/Sobretensión/Baja tensión de entrada

Aislamiento E/S de 1,5KVCC

Control remoto ON/OFF y ajuste de salida (±10%)

3 años de garantía

Especificaciones generales

Precisión de voltaje	±1.5%
Vibración	10~500Hz, 2G 10min./1 ciclo, el período de 60 min, cada uno a lo largo de los ejes X, Y y Z
Refrigeración	Convección por aire libre
Protección contra cortocircuitos	Continua, recuperación automática
Temperatura de trabajo	-40°C a +85°C
EMC	Cumple con EN55032 Clase A, EN61000-4-2,3,4,5,6
Coeficiente de temperatura	0.03% / ℃ (0 ~ 60℃)
Dimensiones (LxAnxAl) (mm)	25.425.410.2mm (110.4 pulgadas)
Material de encapsulado	Cobre recubierto de negro con base no conductora

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
