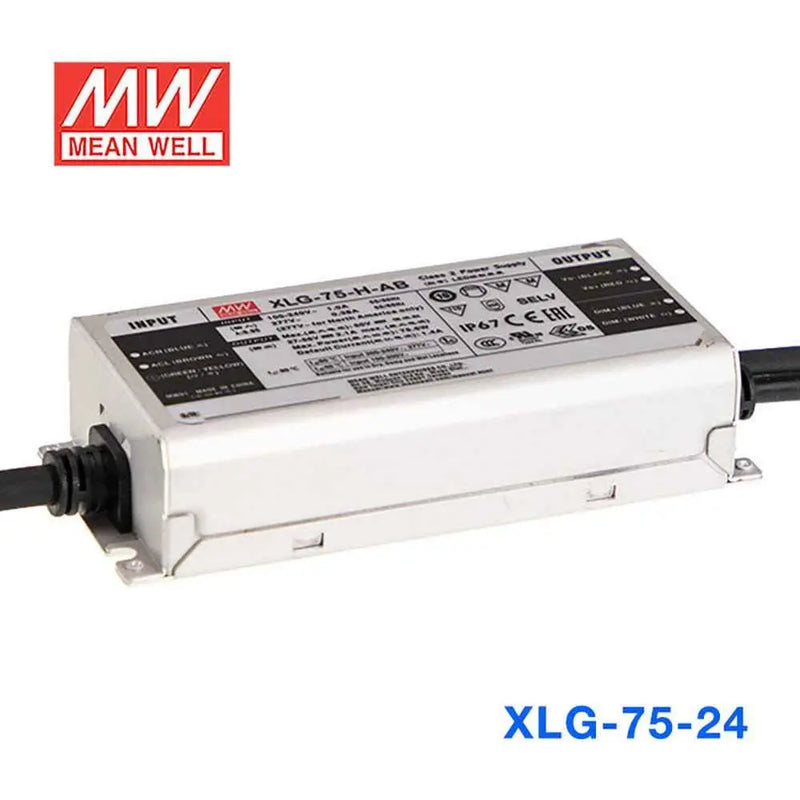

XLG-75-24-A
Manufacturer MEAN WELL

XLG-75-24-A

Availability: 96 can ship immediately

Request a Backorder

Submit your request and we will confirm lead time.

XLG-75-24-A SKU: 025-849
Quantity
Quantity Prices (MXN)
Quantity
Unit Price (MXN)
1+
$ 521.28 MXN
10+
$ 495.22 MXN
20+
$ 484.79 MXN
50+
$ 474.36 MXN
100+
$ 463.94 MXN
200+
$ 453.51 MXN
All prices are displayed in MXN. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
100V-305V
Output Voltage
24V
Rated Current
3.1A
Power Rating
75W
Waterproof
IP67
Dimensions & Weight
5.51 x 2.48 x 1.26 in

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Description:

The MEAN WELL XLG-75-24-A is a high-efficiency 74.4W AC/DC LED driver designed for indoor and outdoor lighting applications. It provides a nominal 24V DC output with a rated current of 3.1A and an adjustable output current range of 1.55A to 3.1A through a built-in potentiometer. Featuring constant voltage and constant current operation, a wide 100–305VAC input range, and up to 90% typical efficiency, this driver delivers reliable performance for LED lighting systems. Its rugged IP67-rated metal enclosure provides protection against dust and water, making it suitable for demanding environments. The XLG-75-24-A incorporates active power factor correction, comprehensive electrical protections, a fanless cooling design, and a 5-year manufacturer warranty.

Features:

  • Manufacturer: MEAN WELL

  • Model: XLG-75-24-A

  • Series: XLG-75

  • Product Type: AC/DC LED Driver

  • Rated Output Power: 74.4W

  • Output Voltage: 24V DC

  • Rated Output Current: 3.1A

  • Adjustable Output Current: 1.55A–3.1A

  • Constant Current Region: 16.8–24V DC

  • Input Voltage Range: 100–305VAC / 142–431VDC

  • Input Frequency: 47–63Hz

  • Typical Efficiency: 90%

  • Power Factor: ≥0.97 at 115VAC, ≥0.95 at 230VAC, ≥0.92 at 277VAC (full load)

  • Current Adjustment: Built-in potentiometer

  • Dimming: No external 0–10V dimming function (A-Type)

  • Ingress Protection: IP67, dustproof and waterproof enclosure

  • Cooling Method: Fanless, free-air convection

  • Case Temperature Range: -40°C to +90°C, subject to derating

  • Surge Protection: 6kV line-to-earth / 4kV line-to-line

  • Protections: Overcurrent, short circuit, overvoltage, and overtemperature

  • Housing: Durable metal enclosure

  • Dimensions: 140 × 63 × 32 mm

  • Weight: 0.58 kg

  • Packaging: 24 units per carton

  • Expected Lifetime: Over 50,000 hours under specified operating conditions

  • Warranty: 5 years

  • Applications: Street lighting, architectural lighting, floodlights, horticultural lighting, commercial lighting, and indoor/outdoor LED lighting installations.

SKU: 025-849

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
