MEAN WELL

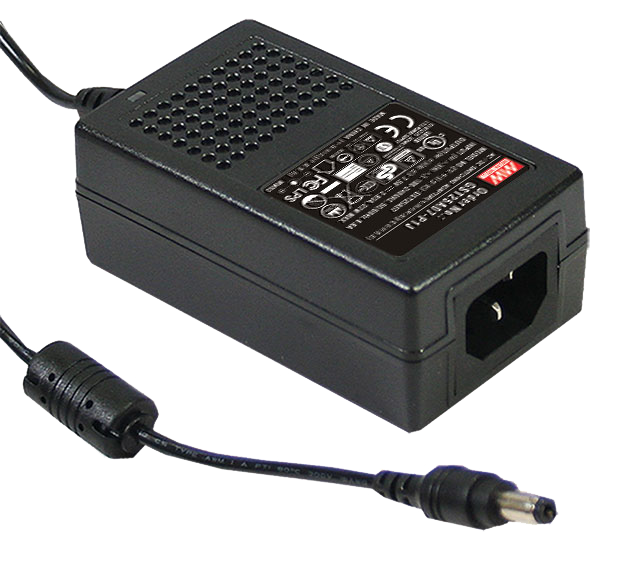

GST25A12-P1J

Name: GST25A12-P1J
Brand: MEAN WELL
SKU: 9461594
Price: 19.31 USD
Availability: OutOfStock

Manufacturer Model Name

Availability: Out of stock

ℹ️ Lead time for quantities greater than shown, contact us

Quantity Prices

Quantity

Unit Price

$19.31

10+

$18.34

20+

$17.96

50+

$17.57

100+

$17.19

200+

$16.80

*Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.

Quick Specs

Output Voltage

12V

Rated Current

2.08A

Power Rating

25W

Waterproof

Non-waterproof

Dimensions

3.66 x 2.12 x 1.41 in

Weight

0.46 lbs

Datasheet (PDF)

Open PDF

If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range

No load power consumption < 0.075W

Energy Efficiency Level VI

Meet EISA 2007 (Energy Independence and Security Act)

NRCan compliant for A/U type

2 pole USA / EURO plug or IEC320-C14/C8

Class I power (with earth pin) only

Protections: Short circuit / Overload / Over voltage

Fully enclosed plastic case

LED indicator for power on

Pass LPS

Approvals: UL / CUL / TUV / BSMI / CCC / PSE / CB / FCC / CE / RCM

3 years warranty

General Specification

AC input voltage range	85~264VAC
AC inrush current (max.)	Cold start, 65A at 230VAC
Overload protection	110%~150% rated output voltage, hiccup mode, auto-recovery
Over voltage protection	110%~140% rated output voltage, clamp by zener diode
Withstand voltage	I/P-O/P: 4242VDC, I/P-FG:2121VDC 1 minute
Working temperature	-30~+70°C (refer to output derating curve )
Safety standards	UL60950-1, CSA 22.2, TUV EN60950-1, BSMI CNS14336, PSE J60950-1, CCC GB4943 approved
EMC standards	EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1
Length of output cable	120cm of 16AWG for 5~12V ; 180cm of UL1185, 18AWG for 15~48V
Dimension (LxWxH)	93x 54x 36 mm
Standard DC plug	P1J: 2.1ID x 5.5OD x11L, tuning fork type

Environmental Documents

📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
